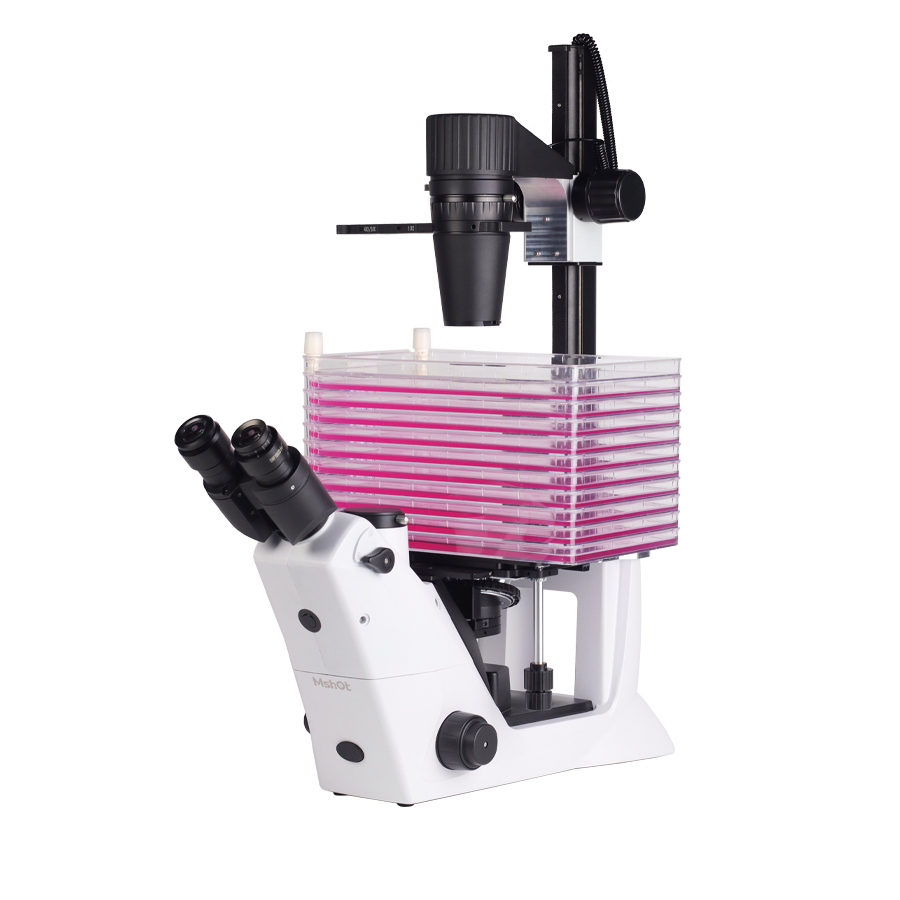

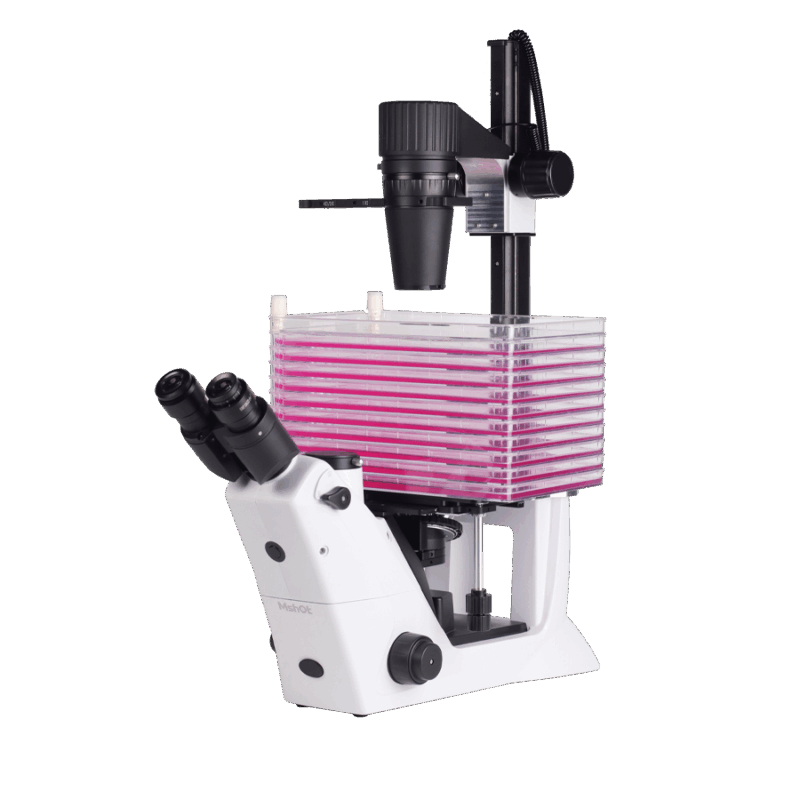

Cell Factory Microscope MIX60-CF

The MIX60-CF features an infinity optical system and multi-state imaging, integrating phase contrast and bright field modes. With long working distance objectives, it clearly captures dynamic processes like cell adhesion and metabolite distribution. Suitable for non-contaminating observations in high culture dishes, cylindrical flasks, and cell factories, it serves research institutions, universities, healthcare, biomedicine, quarantine, and agriculture/dairy sectors.

Category: Cell Factory Microscope MIX60-CF

Description

MIX60-CF adopts an excellent infinity optical system and multi-state imaging: it integrates multiple observation modes such as phase contrast and bright field, and is equipped with a long working distance objective lens to clearly capture key dynamic processes such as cell adhesion growth and metabolite distribution. It can observe non-contamination cell culture in high culture dishes, cylindrical flasks, and cell factories. It can be widely used in scientific research institutes, colleges and universities, medical and health, biomedicine, inspection and quarantine, agriculture, animal husbandry, dairy industry and other departments.

Feature

Adapt to various cell sample observations:

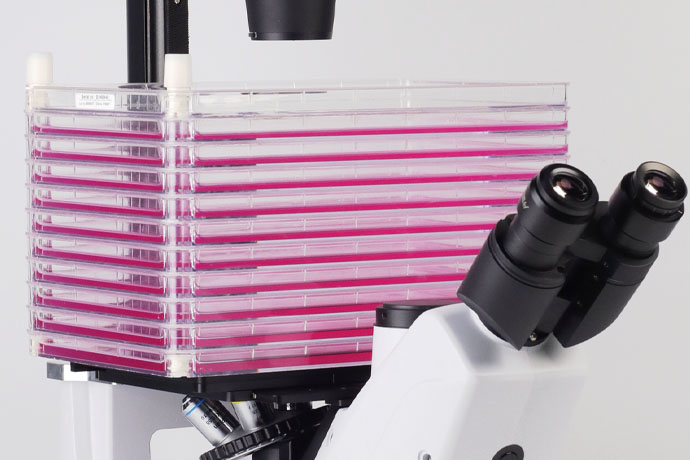

The condenser is liftable, and the stage has a large stroke, adapting to different types of cell factories such as 10-layer, 5-layer, and 2-layer ones. Meanwhile, it can observe various specifications of well plates, culture flasks, culture bags, and Petri dishes, etc.

High degree of digitalization and easy operation：

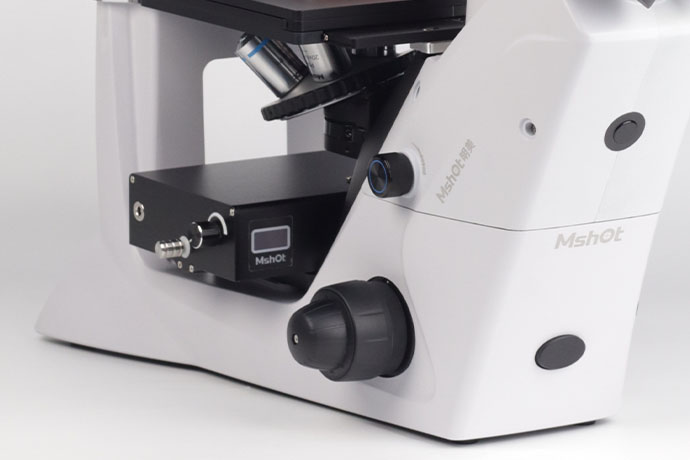

Equipped with a coded objective turret and brightness memory function, it can be upgraded with voice broadcasting and ECO functions.

Flexible configuration：

It has strong expandability and is suitable for cell experiments in different scenarios. There are various choices of eyepieces and objectives. The brightfield and phase contrast observation modes are standard, and it can be upgraded to LED digital display fluorescence observation.

Sample images:

Specifications

Items	Specifications
Host	200mm infinity-corrected optical system, ECO light-off and voice announcement
Eyepiece	WF10X/22 wide-field eyepiece, high eyepoint, diopter adjustable
Eyepiece tube	Fixed binocular tube, 45-degree inclination, interpupillary distance 50mm-75mm, eyepiece/camera port ratio = 100/0 : 0/100
Centering telescope	Centering telescope
Nosepiece	Quintuple nosepiece,ball bearing with anti fungus device
Stage	XY axis stage
Stage	Drip board
Phase contrast ring plate	10X ring, 20X/ 40X ring
Focus system	Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm.
Lighting system	3W full-spectrum white LED with continuously adjustable brightness
Lighting system	Sliding plate phase contrast condenser, working distance 50mm-400mm
Adapter	12V2A
Dust cover	MSHOT dust cover
Objective lens	Long working distance 4X plan objective (M)
	Long working distance 10X plan phase contrast objective (PH)
	Long working distance 20X plan phase contrast objective (PH)
	Long working distance 40X plan phase contrast objective (PH)
