Portable Digital Slide Scanner MDS1

Mshot MDS1 is a palm-sized portable digital slide scanner that breaks through the bulkiness of traditional devices. It highly integrates microscopic imaging and motorized XYZ three-axis system, featuring compact size and high portability. While ensuring high-precision imaging, it quickly completes full-slide digital scanning, supports remote sharing and AI analysis.

Category: Digital Slide Scanning

Description

■ Ultra-portable, Palm-sized Design
■ High-speed & High-definition Scanning
■ Intelligent Automatic Imaging
■ Remote Sharing & AI Analysis

Features

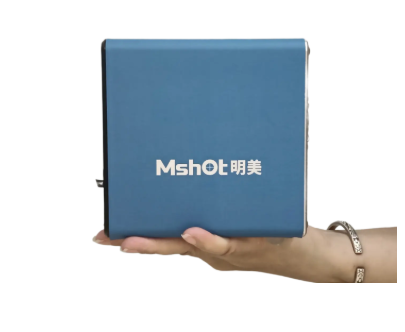

Ultra-portable, Palm-sized Design ：

Only 13cm×11cm×13cm, lightweight and easy to carry, free from site restrictions for mobile research and off-site communication.

High-speed & High-definition Scanning ：

Equipped with a 1.6MP global exposure color CMOS sensor; 0.25μm/pixel at 20× and 0.16μm/pixel at 40× resolution. Scans a 15mm×15mm area in only 30 seconds at 20×, delivering fast imaging and high precision.

Intelligent Automatic Imaging ：

Self-developed AI focusing and multi-layer scanning fusion algorithm with three-axis closed-loop control. Supports auto-focusing, auto-stitching and auto-naming for easy and efficient operation.

Remote Sharing & AI Analysis ：

Supports online viewing and QR code sharing for remote collaboration. Built-in AI analysis module connects big data to realize intelligent image analysis.

Applications

Specifications

Item	Specifications
Dimensions	13cm × 11cm × 13cm, 2.3kg
Image sensor	1.6Mpixel global exposure color CMOS
Resolution	0.25µm/pixel (20×); 0.16µm/pixel (40×)
Scan Mode	Area scan
Scan speed	15mm × 15mm in 30s (20×)
Focusing	Autofocus
Multi-Layer Scan	Supported
Image formats	TIFF / SVS / BMP
Data Storage	Local / cloud storage
Supply voltage	12V
Power	About 60W
Operating Temperature	5°C – 40°C
