Description
■ High‑quality Optics
■ Precision Coaxial Focusing
■ Adjustable LED Illumination
MSHOT ML11 Trinocular Biological Microscope
The MSHOT ML11 is a compact biological microscope featuring a high‑definition optical system, precise focusing mechanism, and energy‑efficient LED illumination. It is widely used in education, routine research, clinical testing, and on‑site inspection, offering stable performance and easy operation for daily microscopy applications.
Share:
Get Exclusive Offers and Updates!
Feature

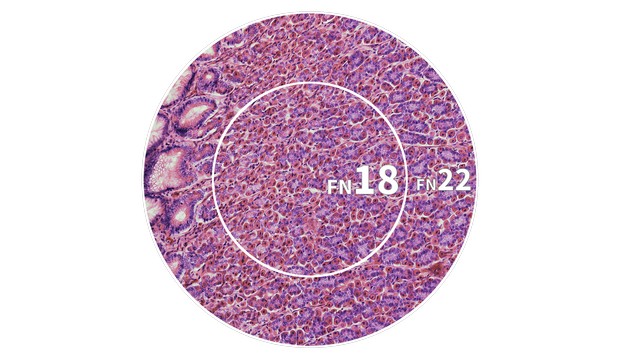

High‑quality Optics:
Equipped with large field of view eyepieces and achromatic objectives to deliver a clear, wide, and comfortable viewing field.
Precision Coaxial Focusing：
Low‑position coarse and fine coaxial focusing with locking and limit protection; fine adjustment accuracy up to 2 μm for smooth and stable operation.
Adjustable LED Illumination:
3W LED transmitted illumination with continuously adjustable brightness, compatible with a dedicated solar power bank.
Sample images:
Specifications
| Parts | Specification | Standard | Optional |
| Eyepiece | WF10X/20mm | • | |
| WF10X/18 (with eyepiece pointer) | • | ||
| Observation tube | 30°inclination,hinged trinocular observation head, interpupillary distance 50mm-75mm，single type diopter adjustable, fix light division R:T:80:20 | • | |
| Nosepiece
Objectives |
Quadruple nosepiece with inward tilt | • | |
| Achromat objective 4X/0.10, W.D.: 37.5mm | • | ||
| Achromat objective 10X/0.25,W.D：6.55mm | • | ||
| Achromat objective 40X/0.65,W.D：0.669mm | • | ||
| Achromat objective 100X/1.25, W.D：0.198mm | • | ||
| ACH 20X | • | ||
| Focus system | Low position hand wheel coaxial coarse and fine adjustment with limit stopper and lock device | • | |
| Stage height movement (coarse movement stroke: 25mm) | • | ||
| Fine focusing accuracy 0.002mm | • | ||
| Stage | 155mmx142mm double layer compound mechanical moving stage, moving range 76mmX50mm , accuracy 0.1mm | • | |
| Transmitted illumination system | 3W LED，Pre-set lamp center, brightness continues adjustable | • | |
| Abbe condenser,N.A.1.25，with changeable aperture diaphragm | • | ||
| Camera adapter | 1X C-mount | • | |
| 0.5X C-mount | • | ||
| Accessories | Allen driver | • | |
| Dust cover | • | ||
| Fluorescence light shield | • |
