Description
■ Broad-spectrum Excitation
■ New-generation LED Technology
■ Compatible with fluorescence microscopes from Zeiss, Leica Microsystems, Nikon, and Olympus.

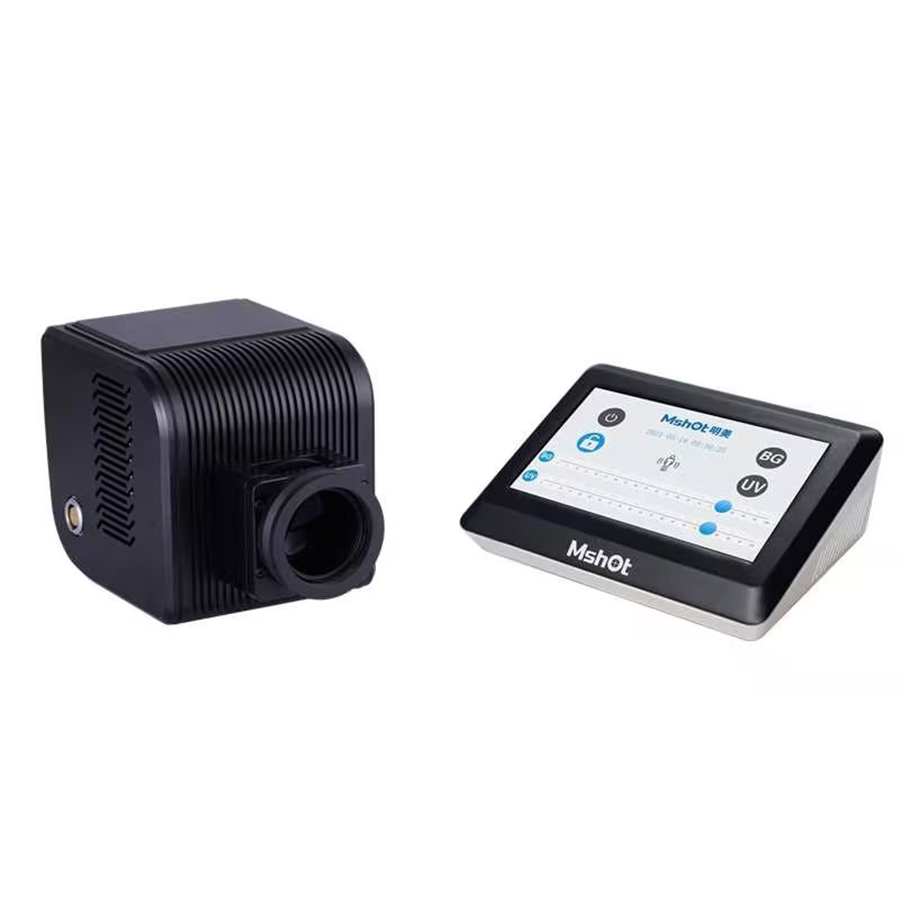

Fluorescence Light Source MG-100
The MG-100 Broad-spectrum High-power LED Fluorescence Light Source is a new-generation light source for fluorescence microscopes, designed to replace mercury lamps. Adopting innovative LED technology, it delivers broad-spectrum excitation covering UV to visible light spectra. Equipped with a touchscreen controller, it features easy operation, instant on/off use, and stepless brightness adjustment. Its service life can reach up to 50,000 hours.
Share:
Get Exclusive Offers and Updates!
Feature
Broad-spectrum Excitation：
It delivers continuous output spectrum, covering the 350–390 nm UV band and 410–760 nm visible light band, perfectly meeting the excitation requirements of commonly used fluorescent dyes.
New-generation LED Technology：
LED fluorescence light sources offer significant advantages over traditional mercury lamps. They require no preheating, support instant on-demand operation with immediate on and off control. The brightness is adjustable in 1% precision increments, featuring stable and uniform illumination. With a service life of up to 50,000 hours, it greatly reduces maintenance costs.
Compatible with major fluorescence microscope brands：
It is compatible with fluorescence microscopes from four major brands including Olympus BX43, Nikon 80i, Leica DM2500, Zeiss Observer D1, as well as mainstream domestic brands. An optional fiber output configuration is available, meeting the needs of users in scientific research, analysis and inspection scenarios.
Applications
Sample images:
Specifications
| Product specification | |
| Item No. | MG 100 |
| Output spectral | 350-390nm/410-760nm two continuous outputs |
| House adapter | Compatible with four major brands of fluorescence microscopes |
| Power | 100W |
| Control method | 2 spectral bands individually control,0-100%dimming,1%accuracy |
| Light memory | 2 spectrum bands |
| Controller | Touch screen control |
| Host adapter | 8P aviation head,with temperature control protection |
| Cooling method | Forced air cooling |
| Lighting Angle | Straight |
| Fiber coupler | Liquid optical waveguide 3mm/5mm |
| LxHxW | Lamp house:180×144×122(mm) |
| Controller box:196×137×65.5(mm,LxWxH) | |
