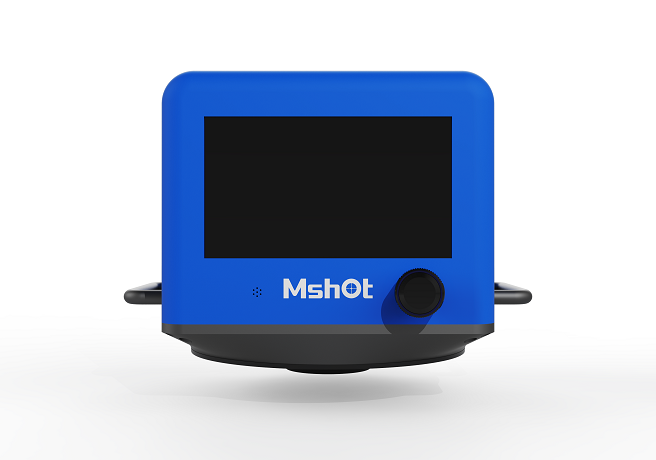

Gross imager ME50

The Mshot ME50 Gross Imager, built for macroscopic specimen photography, packs a 24MP APS – C camera with a high – sensitivity CMOS sensor and a powerful image processor. It delivers fast, sharp imaging with fine details and accurate colors, plus voice – controlled zoom.

Category: Microscope Cameras

Description

The Mshot ME50 Gross Imaging System is an imaging system specifically developed for macroscopic specimen photography. Its main body is a 24-megapixel high-resolution APS-C format camera, equipped with a high-sensitivity CMOS sensor and a high-performance image processor. It boasts fast imaging speed, clear images, delicate detail representation, and precise color reproduction. Meanwhile, it is integrated with a voice control module, allowing for easy magnification and reduction of the field of view.

Feature

Ultra-clear Imaging:

Equipped with a 24-megapixel ultra-high-resolution sensor and a high-performance image processing chip, it delivers accurate color representation, truly restoring every detail of macroscopic samples.

Effective Reflection Elimination:

Built - in dimmable LED ring light delivers uniform illumination. Custom - optimized for gross imaging, it cuts reflection interference effectively.

Big Optical Zoom:

The camera comes with an 18 - 150mm motorized zoom lens. It supports voice control, software control, and foot switch control. Free your hands to capture images at any magnification you want.

Parameters

Technical parameters
Model	ME50
Effective resolution	24.0 Megapixels
Sensor type	CMOS
Sensor size	22.3*14.9mm
Aspect ratio	3:02
Max. Frame rate	6000*4000
	3984*2556
	2976*1984
Spectral response	28 – 72mm
Working mode	Software control, foot switch, voice control
Autofocus	Single – point focus/area focus
Exposure	Auto/manual
Display screen	7 – inch HD ISP screen
Software Features	Image measurement, annotation, depth of field overlay
Photo control	Software, foot switches
Dimensions	158X186X120mm
