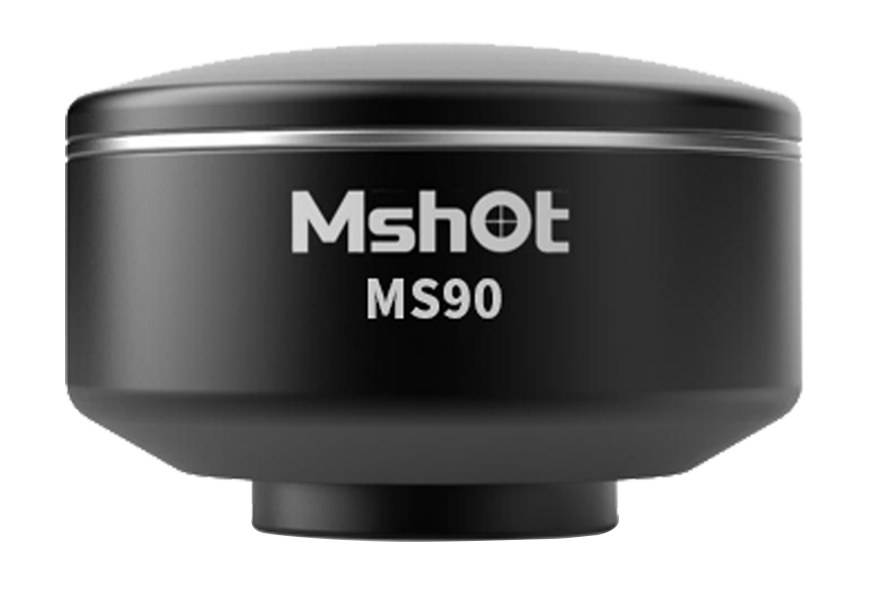

High-Sensitivity Digital Microscope Camera MS90

9MP high-resolution imaging provides clear and smooth live views with up to 40 fps at full resolution.
High sensitivity combined with an excellent signal-to-noise ratio ensures superior low-light capture performance.
Outstanding weak fluorescence imaging capability allows lower excitation light intensity, reducing photobleaching and protecting valuable samples.
With 14-bit color depth and excellent color reproduction, the camera delivers bright, detailed, and true-to-life images.

Categories: High Performance Microscope Cameras, Microscope Cameras

Description

The MS90 Digital Microscope Camera is equipped with a 14-bit back-illuminated image sensor and the latest MS-series hardware ISP image processing chip. Optimized specifically for microscopic imaging, it delivers accurate reproduction of fine sample details and natural colors. Powered by hardware acceleration technology, the MS90 provides faster image processing and smoother operation, ensuring high-quality imaging performance for various microscopy applications.

Feature

Immunofluorescence Assays：

High sensitivity captures subtle weak fluorescence. Reduced light exposure avoids photobleaching and protects precious samples.

H&E Tissue Visualization：

14-bit color depth reproduces natural tissue hues and reveals intricate microstructural features in brightfield.

IHC Biomarker Detection：

Crisp imaging clearly outlines positive staining regions to support precise pathological assessment.

Sample images:

Specifications

Technical Specifications		Technical Specifications
Effective Pixels	9 Megapixels	Frame Rate	40 fps
Pixel Size	3.76 μm × 3.76 μm	Sensor Size	1 inch
ROI	Arbitrary ROI	Scanning Mode	Rolling Scan / Continuous Output
Shutter Type	Electronic Rolling Shutter
Exposure Time	100 μs ~ 15 s	Effective Gain	1× ~ 50×
Spectral Response	380 nm ~ 650 nm (With IRCUT)
A/D Conversion	14-bit	Trigger Mode	Software Trigger
Exposure Mode	Manual Exposure / Auto Exposure / ROI Exposure
White Balance	Auto White Balance / One-click White Balance / ROI White Balance
Image Format	TIF, BMP, JPG, RAW
Software Interface	DirectShow / TWAIN
Operating System	Windows XP 32-bit; Windows 7/8/10/11 32/64-bit
Data Interface	USB 3.0 Type-B Interface, 5 Gbps
Camera Mount	C-Mount	Power Supply	USB 5V Power Supply
Operating Environment	Operating Temperature: 0–40°C; Operating Humidity: 10%–90% RH (Non-condensing)

Resources

High Sensitivity Digital Microscope Camera MS90 Brochure

1 file(s) 1.43 MB

Download
