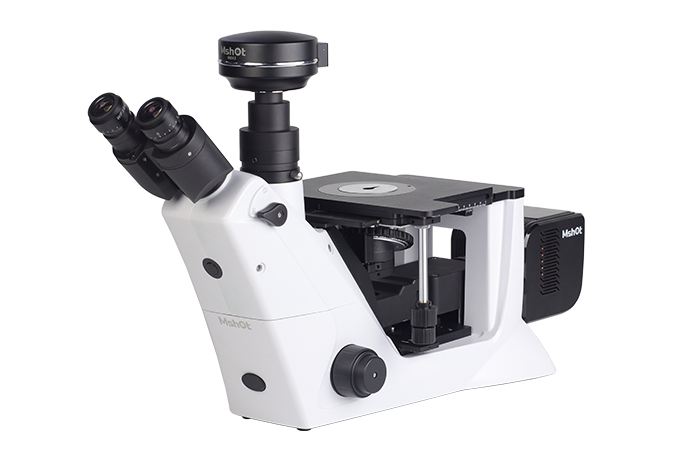

MJX60 Inverted Metallographic Microscope: Infinity optical system + LED epi-illumination for bright-field/polarized light observation of large metal samples. Ideal for industry QC.
The inverted metallographic microscope MJX60 adopts a mature infinity optical system, high-quality LED epi-illumination, ultra-long-life full-spectrum white light, and stable color temperature to achieve bright field and polarized light observation, which is suitable for observing large-sized metal samples.
| Item | Specification |
| Main Frame | 200mm infinity-corrected optical system, with ECO automatic light-off and voice-controlled system |
| Eyepiece | WF10X/22 flat-field eyepiece, high eyepoint, diopter adjustable |

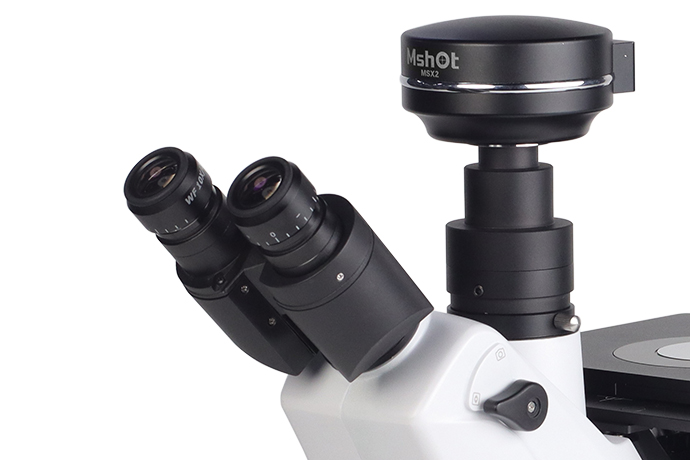

| Eyepiece Tube | Fixed binocular tube, 45° inclination
Pupil distance: 50-75mm Optical path: eyepiece/camera port = 100/0 : 0/100 |
| Objective Turret | Five-hole internal positioning turret, ball bearing internal positioning, with anti-fungal device |
| Stage | XY metallographic stage |
| Metallographic water drop plate | |
| Focusing Mechanism | Coaxial coarse and fine adjustment, with limit device and locking device, low-position coaxial focusing knobs, fine-tuning knob grid value: 2μm |

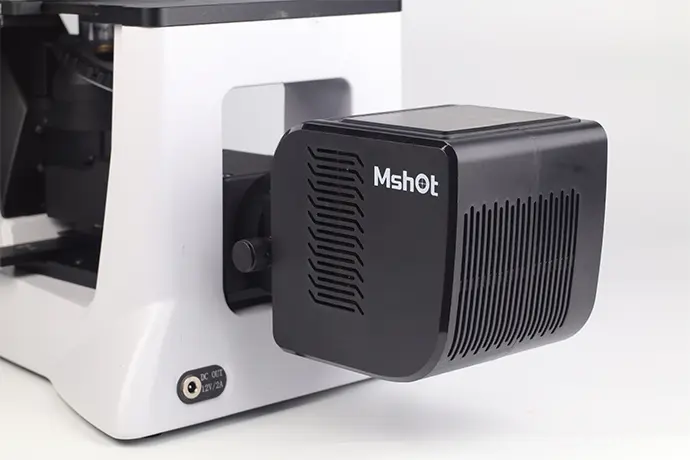

| Incident Illumination System | 3W full-spectrum white LED, continuously adjustable brightness |
| Polarizer and analyzer insertion plates for polarized light observation | |
| Incident illumination optical path with aperture diaphragm, field diaphragm, and filter holder | |
| Adapter | 12V2A |
| Dust Cover | MSHOT special dust cover |

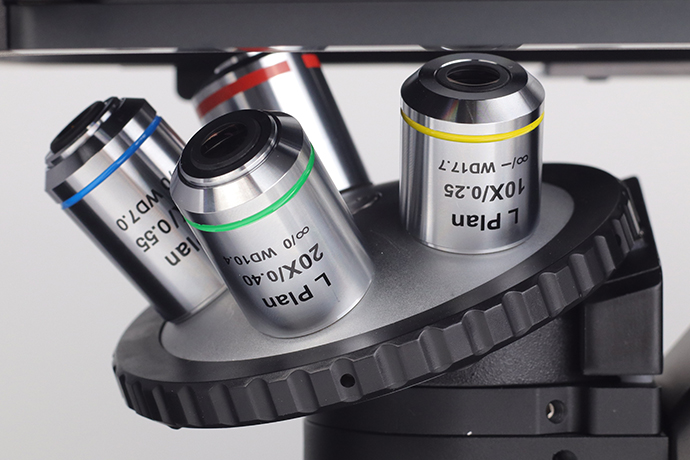

| Objectives | Long working distance plan objective L Plan5X/0.12 Working distance: 23.6mm |
| Long working distance plan objective L Plan 10X/0.25 Working distance: 17.7mm | |
| Long working distance plan objective L Plan 20X/0.40 Working distance: 10.4mm | |
| Long working distance plan objective L Plan 50X/0.55 Working distance: 7mm |
