Description
● Designed for Leica DM3000 fluorescence upgrade
● Suitable for pathology and histology applications
● Stable LED fluorescence illumination
● Easy fluorescence upgrade
● Low maintenance LED technology
● Flexible fluorescence observation

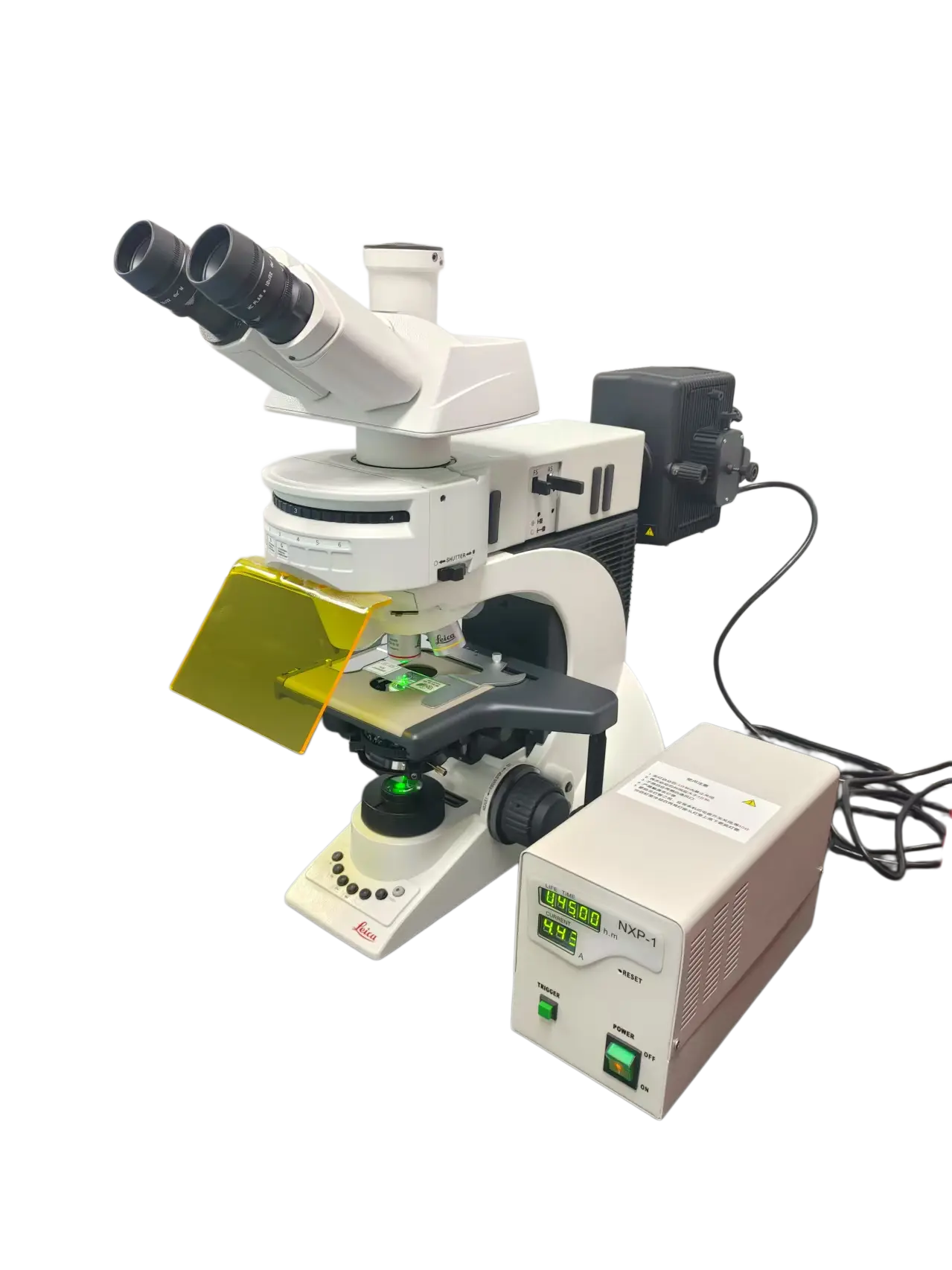

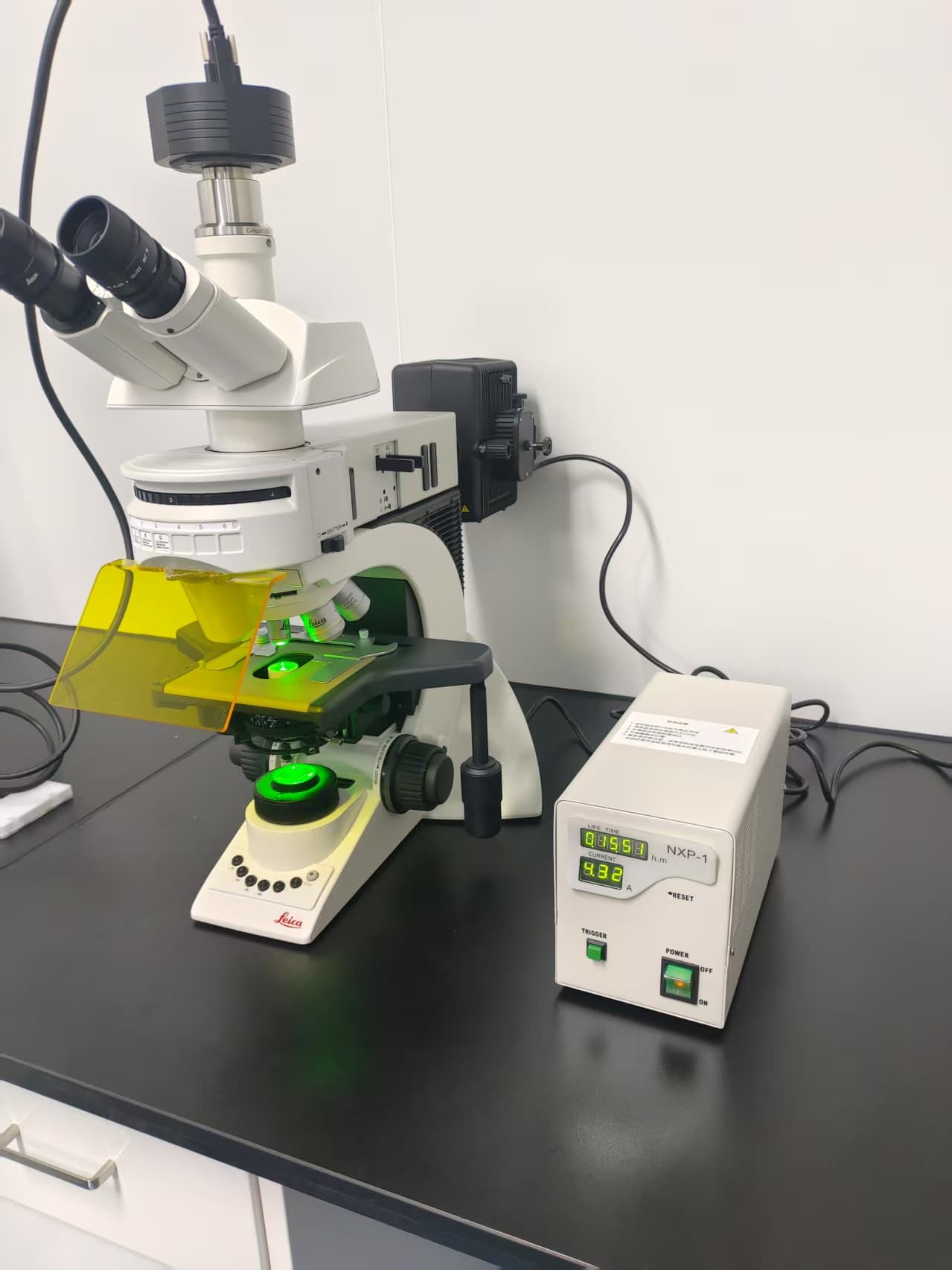

Upgrade Leica DM3000 to LED Fluorescence

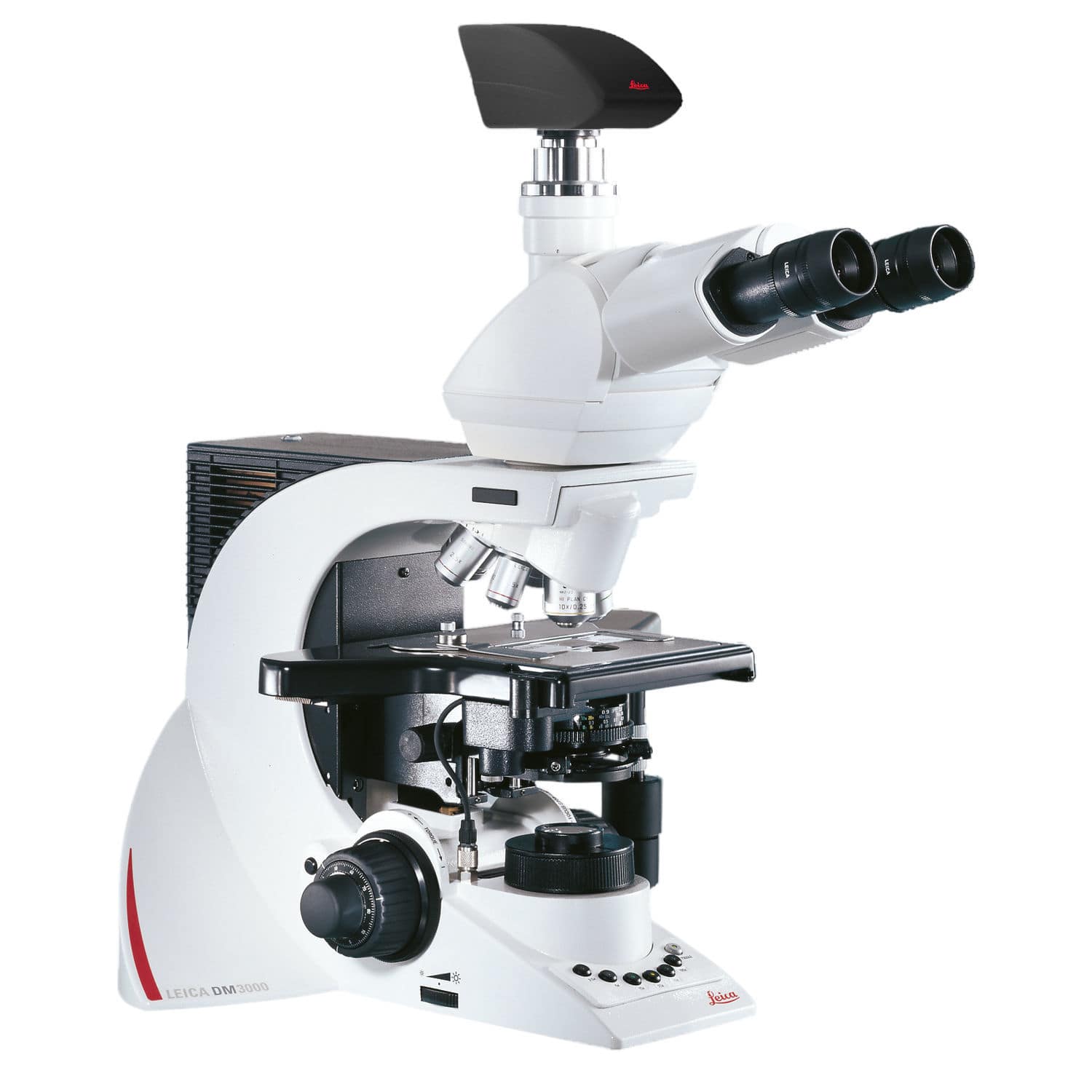

The Leica DM3000 microscope is commonly used in pathology, histology, and biomedical laboratories. The MSHOT MF-LED Fluorescence Module provides an efficient upgrade path, enabling fluorescence imaging for routine and research applications while protecting existing equipment investments.
Share:
Get Exclusive Offers and Updates!
Feature
MF-LED Single & Multi-Channels LED Fluorescence
Module for Nikon Eclipse E100 Educational Microscope
■ Compact design contains light source and filters in one unit.
■ Instant on-off, no need waiting of pre-heating or cooling.
■ Light source synchronous switching with filter groups via slider / lever.
■ No requirement of external or added power supply.
■ LED has a long service life and low labor maintenance cost.
■ The original transmitted light of the microscope is retained.
■ CE,FCC,EMC,EU and ISO certified.
■ Instant on-off, no need waiting of pre-heating or cooling.
■ Light source synchronous switching with filter groups via slider / lever.
■ No requirement of external or added power supply.
■ LED has a long service life and low labor maintenance cost.
■ The original transmitted light of the microscope is retained.
■ CE,FCC,EMC,EU and ISO certified.
MF-LED Single & Multi-Channels LED Fluorescence
Module for Nikon Eclipse E100 Educational Microscope classic applications
■ Botany
■ Clinical diagnose
■ Immnuofluorescence
■ Tuberculosis sputum slide
■ Skin and foot fungus
■ Food microorganism
■ Respiratory disease
■ Sperm analysis
■ Fluorochrome stained slide
■ Clinical diagnose
■ Immnuofluorescence
■ Tuberculosis sputum slide
■ Skin and foot fungus
■ Food microorganism
■ Respiratory disease
■ Sperm analysis
■ Fluorochrome stained slide
Specifications
| Item | Specifications |
| Filter Cube: B | FB-B-M : EX: 470/40nm; DM: 505nm; EM: 530/40nm; |
| FL-B-M : EX: 460-490nm; DM: 500nm; EM: 520nm LP; | |
| Filter Cube: G | FB-G-M : EX: 530/40nm; DM: 565nm; EM: 605/55nm; |
| FL-G-M : EX: 510-550nm; DM: 570nm; EM: 590nm LP; | |
| Filter Cube: U | FB-U-M : EX: 375/28nm; DM: 415nm; EM: 460/50nm; |
| FL-G-M : EX: 330-380nm; DM: 400nm; EM: 420nm LP; | |
| Filter Cube: Y | FL-Y-M : EX: 540-580nm; DM: 600nm; EM: 610 nm LP |
| Excitation Light Source | 3W LED light source (5W for Y/G), adjustable brightness, visual digital display |
| Observation Method | Fluorescence / Brightfield switching |
| Power Input | DC 12V 2A |
