MF-LED Single & Multi-Channels LED Fluorescence Module for Nikon ECLIPSE Ci Series Laboratory Microscope

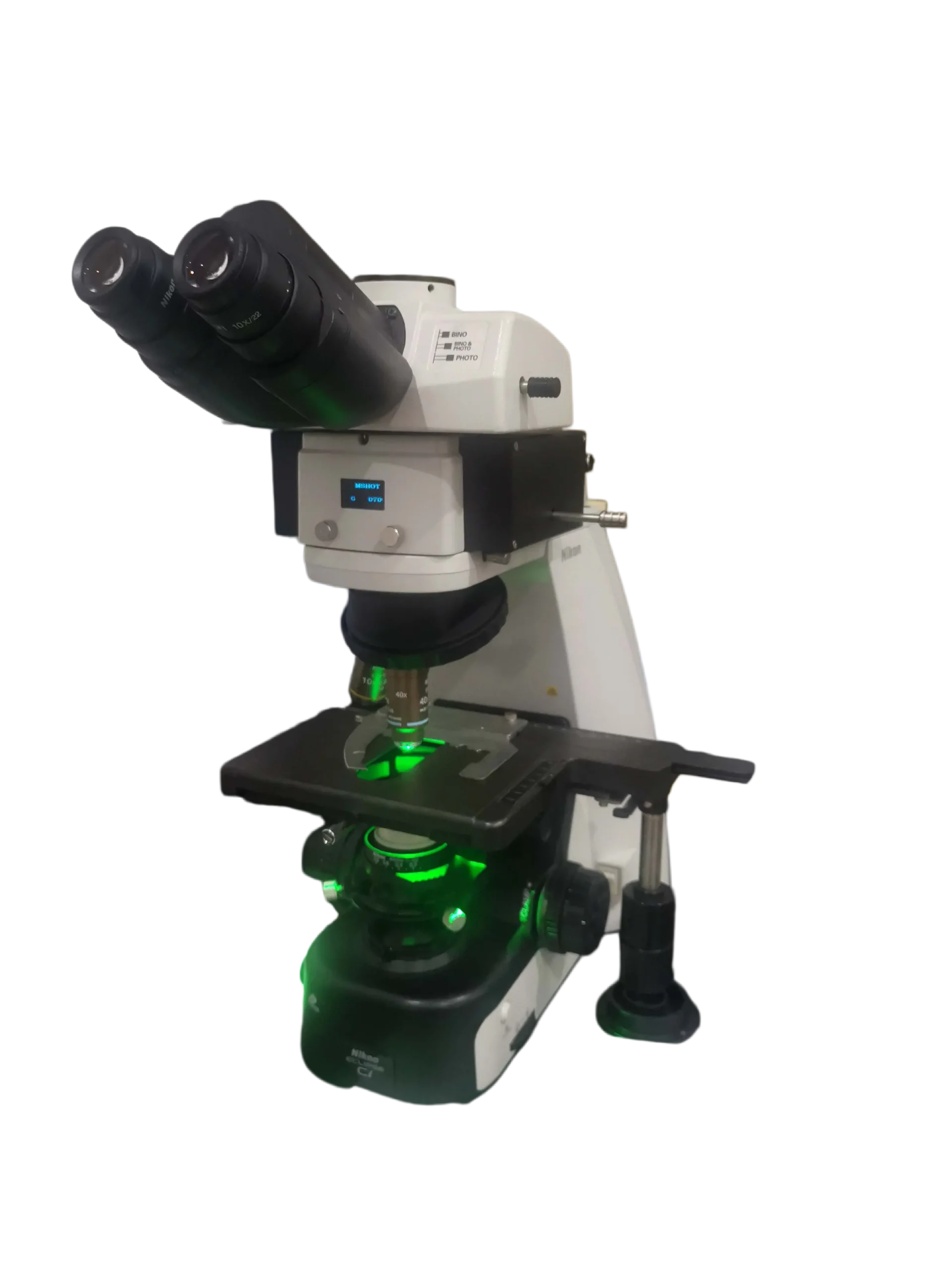

MF-LED Multi-Channels LED Fluorescence Module (Multi-Channel Version)
Specially adapted for the Nikon ECLIPSE Ci series, this multi-channel module enables zero-damage fluorescence upgrade with no optical path adjustment. The 3-color 3-channel design with V/B/G/Y/R optional bands fully meets multi-color fluorescence detection needs for clinical and research use. Precision digital dimming ensures repeatable quantitative imaging results. The 30,000-hour mercury-free LED source guarantees long-term stable operation and reduced laboratory maintenance costs.

MF-LED Single-Channel LED Fluorescence Module (Single-Channel Version)
This single-channel module perfectly upgrades the Nikon ECLIPSE Ci series to professional fluorescence microscopes. It adopts high-stability mercury-free LED cold light source with zero preheating, suitable for long-term high-frequency laboratory use. It covers multiple excitation bands for detection of tuberculosis, autoimmune diseases, respiratory and reproductive tract diseases. Flexible push-pull switching between brightfield and fluorescence modes greatly improves laboratory detection efficiency.

Share:

Get Exclusive Offers and Updates!

    Description

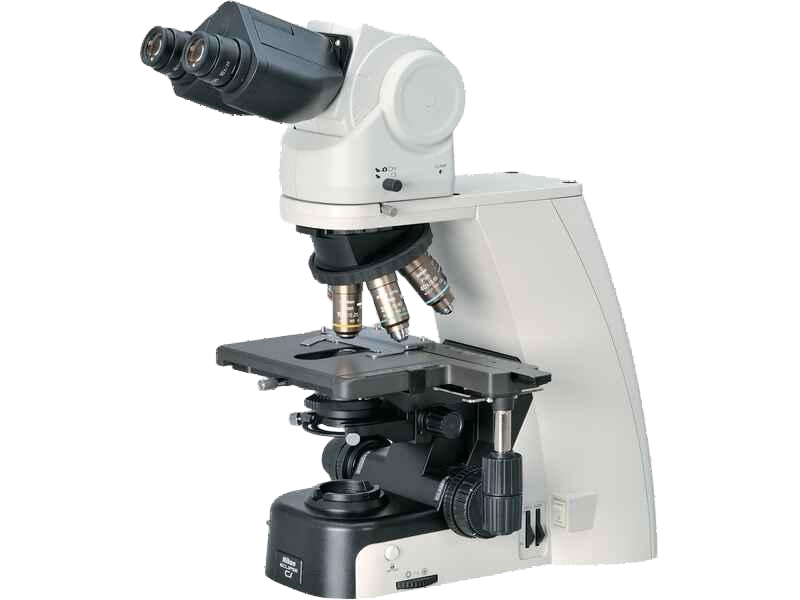

    The Nikon ECLIPSE Ci series is a professional laboratory-grade microscope with high-precision infinity optics, delivering flat, high-quality imaging for clinical diagnosis and biomedical research. Our MF-LED single-channel and multi-channel fluorescence modules are ideal cost-effective upgrade solutions for the Ci series.

    Feature

    Single channel epi-illuminating fluorescence microscope

    MF-LED Single & Multi-Channels LED Fluorescence
    Module for Nikon Eclipse E100 Educational Microscope

    ■ Compact design contains light source and filters in one unit.
    ■ Instant on-off, no need waiting of pre-heating or cooling.
    ■ Light source synchronous switching with filter groups via slider / lever.
    ■ No requirement of external or added power supply.
    ■ LED has a long service life and low labor maintenance cost.
    ■ The original transmitted light of the microscope is retained.
    ■ CE,FCC,EMC,EU and ISO certified.
    Immunofluorescence imaging under mshot microscope

    MF-LED Single & Multi-Channels LED Fluorescence
    Module for Nikon Eclipse E100 Educational Microscope classic applications

    ■ Botany
    ■ Clinical diagnose
    ■ Immnuofluorescence
    ■ Tuberculosis sputum slide
    ■ Skin and foot fungus
    ■ Food microorganism
    ■ Respiratory disease
    ■ Sperm analysis
    ■ Fluorochrome stained slide

    Specifications

    MF-LED Single-Channels LED Fluorescence Module

    B Blue 475/30nm          >505nm          510nmLP GFP / FITC /EGFP/ Malaria  diagnostic/ Alexa 488 / Cy2@ / Fluo-4 / FluorX@ / Fluoro-Jade
    B2 Royal blue 420-480nm >500nm 510nmLP Tuberculosis Diagnostic
    G Green 530/40nm >570nm 575nmLP PI / EB / EH /TRITC
    Y Yellow 560/40nm >600nm 610nmLP mCherry / Texas Red / AlexaFluor 594
    U UV 355/50nm >410nm 420nmLP DAPI / Hoechst 33342&33258 / AMCA/AMCA-X / Alexa 350
    Light source Blue &UV: 3W LED cold lamp for each filter group Green/Yellow: 5W LED cold lamp for each filter group
    Observation Fluorescence

    Bright field & phase contrast by microscope original lighting

    Operation Lever : B, G/Y, UV/O (bright field)
    Power control Rota-table knob, continuously adjustable brightness
    Input power 12V 2A
    Shell High rigid precision-cast aluminium with coating
    Light baffle Orange color plastic light baffle

    MF-LED Multi-Channels LED Fluorescence Module

    B Blue 475/30nm                 >505nm              530/40nm GFP / FITC / EGFP/ Malaria   diagnostic/ Alexa 488 / Cy2@ / Fluo-4 / FluorX@ / Fluoro-Jade
    Y Yellow 560/40nm >600nm 610nmLP mCherry / Texas Red / AlexaFluor 594
    U UV 355/50nm >410nm 420nmLP DAPI / Hoechst 33342&33258 / AMCA/AMCA-X / Alexa 350
    G Green 530/40nm >570nm 575nmLP PI / EB / EH /TRITC
    Light source Blue &UV: 3W LED cold lamp for each filter group

    Green/Yellow: 5W LED cold lamp for each filter group

    Observation Fluorescence

    Bright field & phase contrast by microscope original lighting

    Digital screen Show light intensity 0~100% and remember each color light source brightness
    Operation Lever : B, G, UV/O (bright field)
    Power control Rota-table knob, continuously adjustable brightness
    Input power 12V 2A
    Shell High rigid precision-cast aluminium with coating
    Light baffle Orange color plastic light baffle
