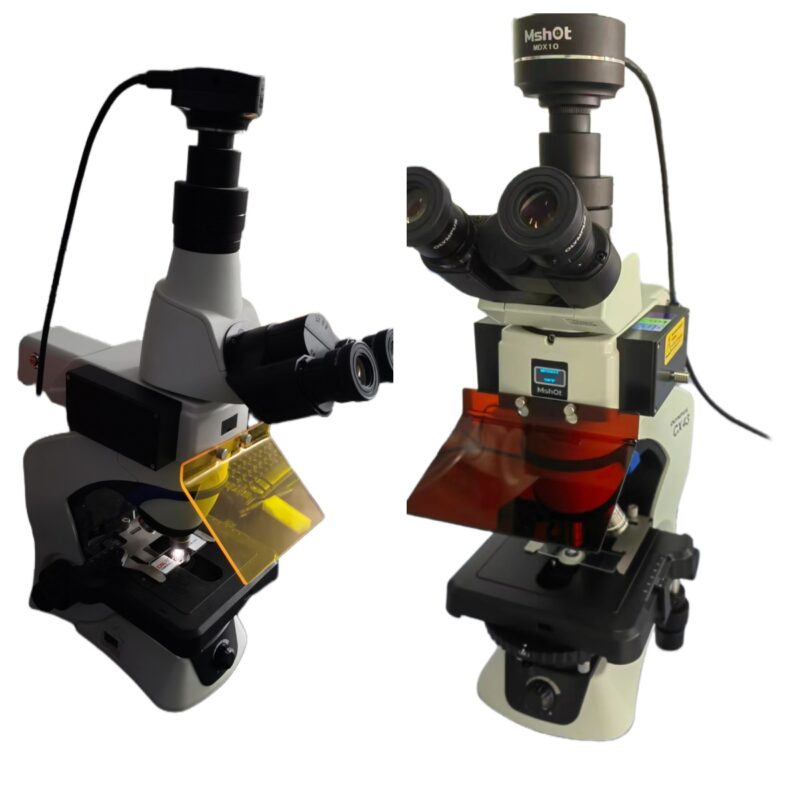

MSHOT Fluorescence Module for Evident CX33/43

The Evident CX33/CX43 are ergonomically designed mid-range upright biological microscopes with comfortable operation and high stability, suitable for clinical testing, multi-purpose laboratories, and basic fluorescence applications. Featuring a long-life LED light source and reliable optical performance, they support easy fluorescence expansion to meet routine pathology, cell observation, and basic fluorescence experiment needs.
Share:

Get Exclusive Offers and Updates!

    Description

    MSHOT Fluorescence Module for Evident CX33/CX43 – Optimized for the Evident CX33/CX43 upright microscope, the MSHOT fluorescence module features tool‑free installation without altering the original optical path, ensuring zero shift during switching for clinical, research and multi‑color observation. The Single‑Color model adopts slider switching with instant‑on LEDs and low maintenance costs. The Digital‑Display model provides three channels, customizable filters, integrated cold LED illumination and a front digital display for stable, reliable performance. It upgrades standard microscopes to fluorescence‑ready devices without replacing the main unit, meeting diverse experimental needs for clinical testing, laboratory research and multi‑color biological observation.

    Features

    Single‑Color Fluorescence Module

    • Easy slider/rod switching between fluorescence and brightfield observation
    • Multiple high‑efficiency fluorescence bands for diverse applications
    • Instant operation with no warm‑up required
    • Long LED service life and low maintenance cost
    • Simple structure for easy installation

    Digital‑Display Fluorescence Module

    • Three‑channel structure with U channel doubling as brightfield channel
    • Customizable fluorescence bands with stable and smooth switching
    • Integrated LED cold light source, driver, and filter set
    • Front digital display for channel and brightness status
    • Stable performance and reliable operation

    Specifications

    Item Single‑Color Fluorescence Module Digital‑Display Fluorescence Module
    Filter Sets B BP/B LP, G BP/G LP, U UV BP/U UV LP, Y LP (select one) B BLP, G GLP, U UV LP, Y LP
    Excitation Source 3W LED (5W for Y/G), adjustable brightness 3W LED (5W for Y/G), adjustable with digital display
    Observation Mode Fluorescence / Brightfield switching Fluorescence / Brightfield switching
    Channels Single channel Three channels
    Input Power DC 12V 2A DC 12V 2A
