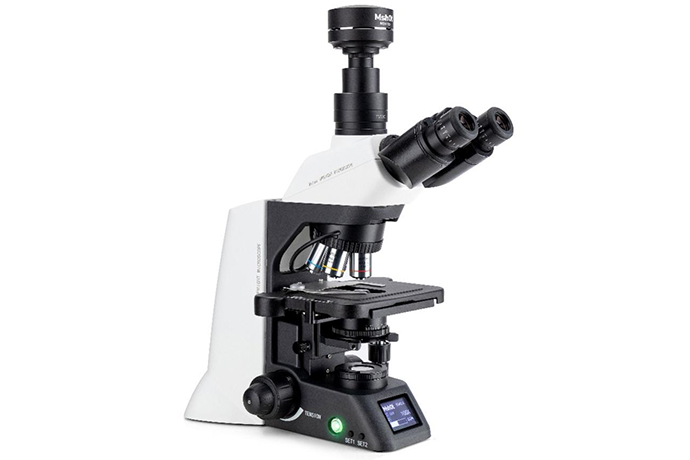

MSHOT ML45 Biological Microscope

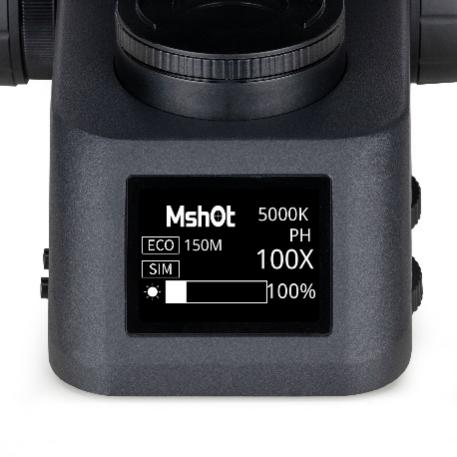

The ML45 microscope is equipped with infinity optical system, encoded nosepiece, Abbe condenser, digital display and high expandability supporting fluorescence, phase contrast, polarization and darkfield upgrades. It adopts high‑performance A‑plan achromatic flat‑field objectives, WF10X widefield eyepieces, 3W LED illumination with adjustable color temperature, coaxial coarse and fine focusing system, large travel stage and multifunctional smart system with ECO auto‑off, voice control and USB programmability. Optional motorized 6‑position fluorescence module provides up to 6 fluorescence channels, 1s fast switching and individual channel brightness control for professional biomedical and clinical applications.

Description

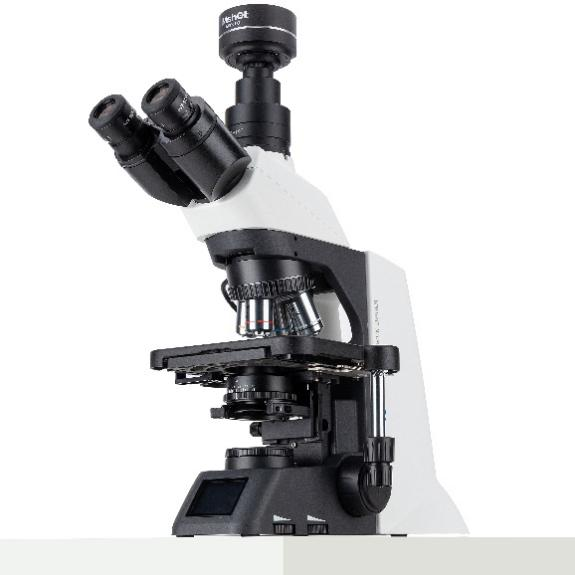

The ML45 upright biological microscope features infinity‑corrected optics and intelligent operation, designed for hospital labs, pathology departments and research institutes. It delivers ease of use and high performance for hospital diagnostics including blood smears, pathology slides and microbiological detection, as well as lab research for cell morphology observation and material surface analysis. With brightness memory, color temperature adjustment, stable performance and easy upgradability, it reduces operation time, minimizes errors and improves overall workflow efficiency.

Feature

Large Field of View High Eye-Point Eyepieces

The large field of view eyepieces provide a flat and wide field of view, reducing eye fatigue caused by long working hours; the high eye point design allows observation without taking off glasses.

Compact & Portable Design for Classroom and Lab Use

The ML31 features a space-saving compact body with a built-in carrying handle for easy transport. The hand-tightened observation tube can be rotated to fit neatly into standard classroom cabinets, making it ideal for educational settings with limited storage space.

High-Performance Infinity Achromatic Optical System

The ML31 adopts an independent infinity achromatic optical design, delivering sharp, high-contrast images with exceptional detail across the entire field of view. This system supports multiple observation methods, including optional fluorescence, phase contrast, and darkfield modules, while maintaining consistent magnification performance.

Ergonomic Low-Hand Focusing Mechanism

The ML31 features a low-position coaxial coarse and fine focusing system, designed for optimal comfort during long-term use. The intuitive controls allow users to operate the microscope in a natural posture, reducing hand and arm fatigue caused by extended suspended work.

Long-Life LED Light Source with Kohler Illumination

The ML31 uses a high-brightness, energy-efficient LED light source with continuous brightness adjustment via a side-mounted knob. Standard Kohler illumination ensures uniform, shadow-free lighting across the field of view, delivering sharp, clear images even at low magnifications, with excellent long-term maintainability.

Versatile Upgrade Functions

The ML31 is designed with rich upgrade potential to adapt to advanced applications. It supports multiple optional enhancements, including: Motorized focusing and motorized stage Fluorescence observation Phase contrast observation Darkfield observation Polarized light observation

Area of application：

■Blood smear examination
■Pathological imaging & analysis

Sample images:

Specifications

Parts	Specification	Standard	Optional
Eyepiece	WF10X/20mm	•
Eyepiece	WF10X/18 (with eyepiece pointer)		•
Observation tube	30°inclination,hinged trinocular observation head, interpupillary distance 50mm-75mm，single type diopter adjustable, fix light division R:T:80:20	•
Nosepiece Objectives	Quadruple nosepiece with inward tilt	•
	Achromat objective 4X/0.10, W.D.: 37.5mm	•
	Achromat objective 10X/0.25,W.D：6.55mm	•
	Achromat objective 40X/0.65,W.D：0.669mm	•
	Achromat objective 100X/1.25, W.D：0.198mm	•
	ACH 20X		•
Focus system	Low position hand wheel coaxial coarse and fine adjustment with limit stopper and lock device	•
	Stage height movement (coarse movement stroke: 25mm)	•
	Fine focusing accuracy 0.002mm	•
Stage	155mmx142mm double layer compound mechanical moving stage, moving range 76mmX50mm , accuracy 0.1mm	•
Transmitted illumination system	3W LED，Pre-set lamp center, brightness continues adjustable	•
Transmitted illumination system	Abbe condenser,N.A.1.25，with changeable aperture diaphragm	•
Camera adapter	1X C-mount	•
Camera adapter	0.5X C-mount		•
Accessories	Allen driver	•
	Dust cover	•
	Fluorescence light shield	•
