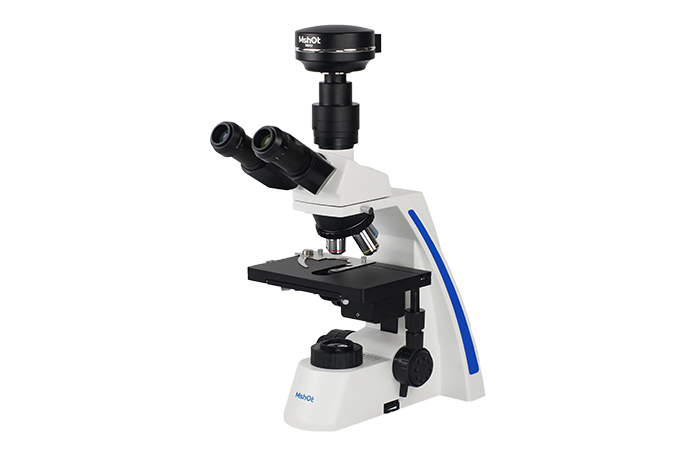

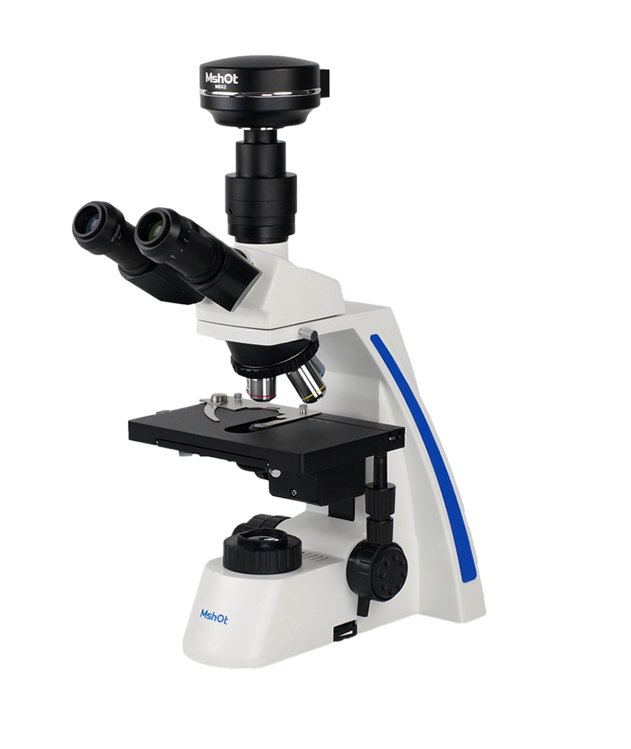

Biological Microscope ML31

MSHOT ML31 is a regular horizontal upright biological microscope with a trinocular head with function similar to Olympus CX23, it has an infinity optical system and is configured with 4x to 100x plan achromatic objectives. The microscope has received positive feedback from the medical and educational fields, it provides excellent optical performance with outstanding cost efficiency

Description

The ML31 biological microscope adopts an infinity optical system and standard LED Kohler illumination, which enables versatile microscope observation including bright field, black field, and contrast, a precise focusing system, coaxial coarse and fine focusing mechanisms, a mechanical moving platform, an interface for external digital cameras, and a wide range of views and fields of view.

Feature

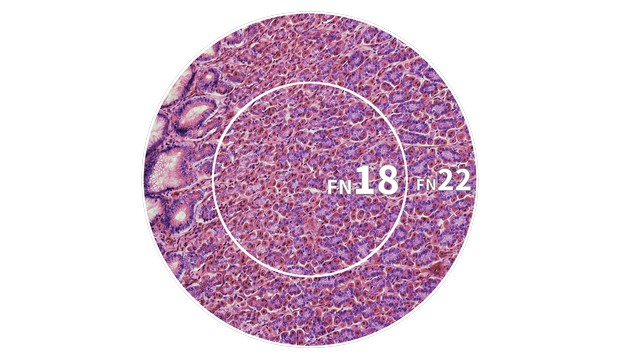

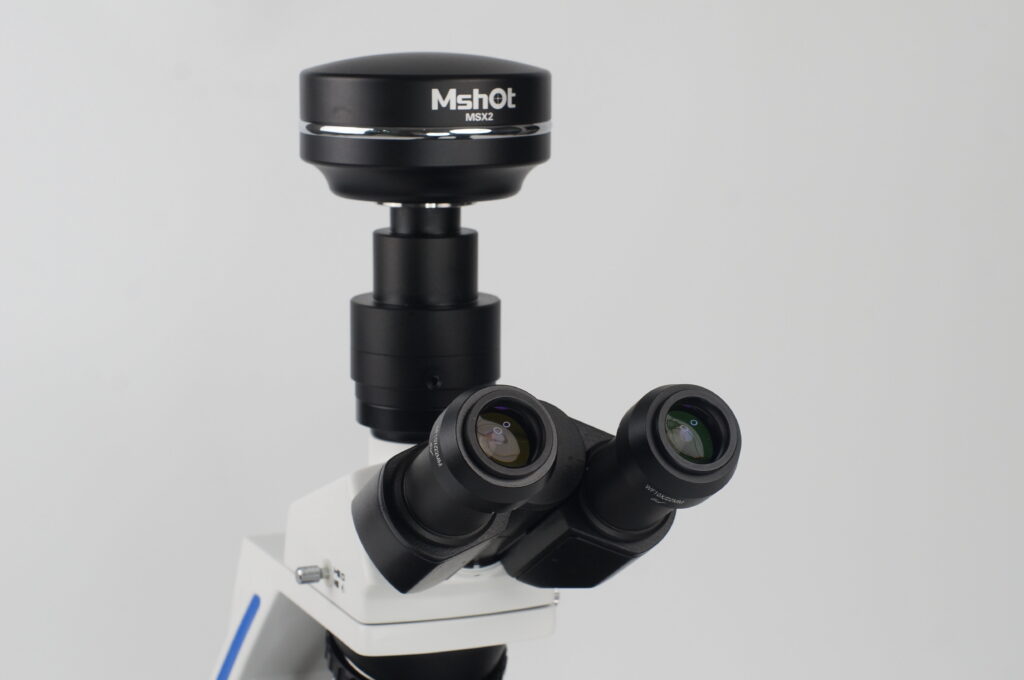

Large Field of View High Eye-Point Eyepieces

The large field of view eyepieces provide a flat and wide field of view, reducing eye fatigue caused by long working hours; the high eye point design allows observation without taking off glasses.

Compact & Portable Design for Classroom and Lab Use

The ML31 features a space-saving compact body with a built-in carrying handle for easy transport. The hand-tightened observation tube can be rotated to fit neatly into standard classroom cabinets, making it ideal for educational settings with limited storage space.

High-Performance Infinity Achromatic Optical System

The ML31 adopts an independent infinity achromatic optical design, delivering sharp, high-contrast images with exceptional detail across the entire field of view. This system supports multiple observation methods, including optional fluorescence, phase contrast, and darkfield modules, while maintaining consistent magnification performance.

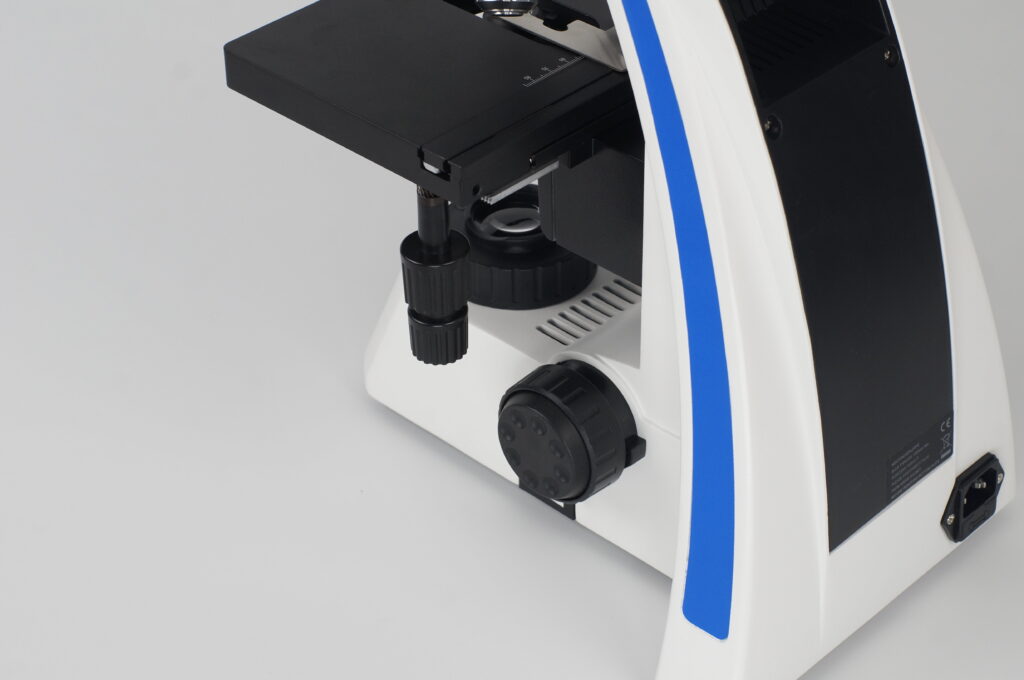

Ergonomic Low-Hand Focusing Mechanism

The ML31 features a low-position coaxial coarse and fine focusing system, designed for optimal comfort during long-term use. The intuitive controls allow users to operate the microscope in a natural posture, reducing hand and arm fatigue caused by extended suspended work.

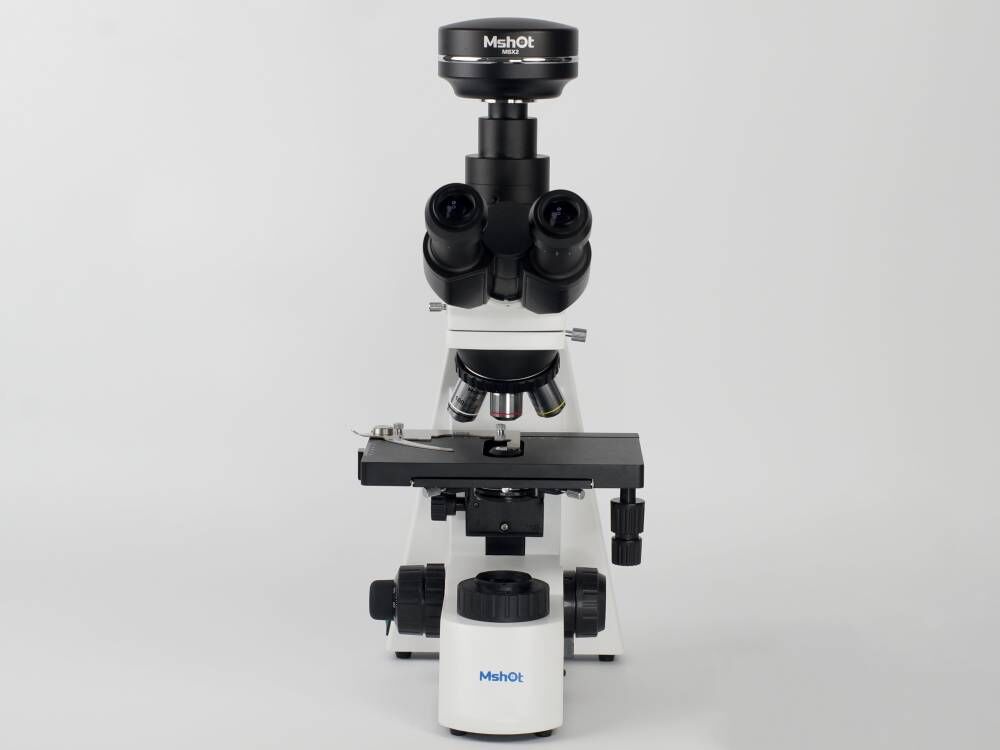

Long-Life LED Light Source with Kohler Illumination

The ML31 uses a high-brightness, energy-efficient LED light source with continuous brightness adjustment via a side-mounted knob. Standard Kohler illumination ensures uniform, shadow-free lighting across the field of view, delivering sharp, clear images even at low magnifications, with excellent long-term maintainability.

Versatile Upgrade Functions

The ML31 is designed with rich upgrade potential to adapt to advanced applications. It supports multiple optional enhancements, including: Motorized focusing and motorized stage Fluorescence observation Phase contrast observation Darkfield observation Polarized light observation

Area of application：

■Blood smear examination
■Pathological imaging & analysis

Sample images:

Specifications

Observation tube	Hinged Trinocular tube, 30°inclined, interpupillary distance 53mm-75mm
Eyepiece	Wide field WF10X/22mm
	Optional	WF16X/ FN15mm
Nosepiece	Inward quadruple nosepiece
Objectives	Infinity Plan Achromatic Objectives
	4X，NA0.1，working distance 21.5mm
	10x，Na0.25，working distance7.5mm
	40X，NA0.60，working distance 0.65mm
	100X(oil), NA1.25, working distance 0.185mm
	Optional objective	Plan achromatic 20X, NA0.40
Condenser	Abbe condenser NA1.25
Focus	Coaxial coarse and fine adjustment with limit stopper and lock device
	Stage height movement (coarse movement stroke: 24mm)
	Stroke per rotation: 40mm
	Microstroke per rotation: 0.002mm
Stage	Double-deck mechanical stage, size 210×140mm, moving range 76mm×50mm slider holder can hold double pieces slides at one time
Transmitted light	White LED, brightness adjustable
Power line	International standard
Adapter	1X C-mount adapter
	Optional adapter	0.5X C-mount adapter

Resources

Trinocular biological microscope ML31 user manual

1 file(s) 867.94 KB

Download
