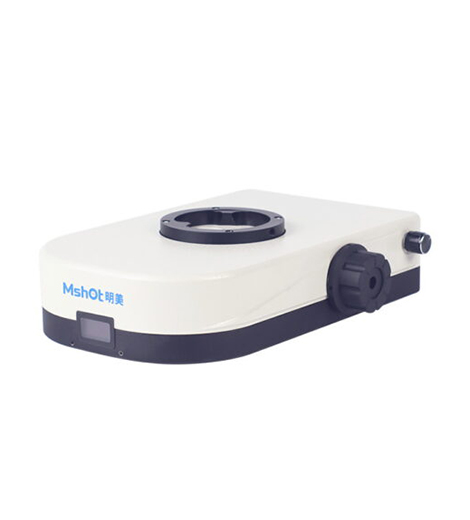

Stereo Fluorescence Module MZX-LED

MZX-LED series LED fluorescent module is designed to upgrade stereo microscope to fluorescence functional.The moudle integrates fluorescence filters and light source in one unit, switch fluorescence observation and bright field observation by wheel. Digital screen shows and remember each channel light intensity.

Share:

Get Exclusive Offers and Updates!

    Description

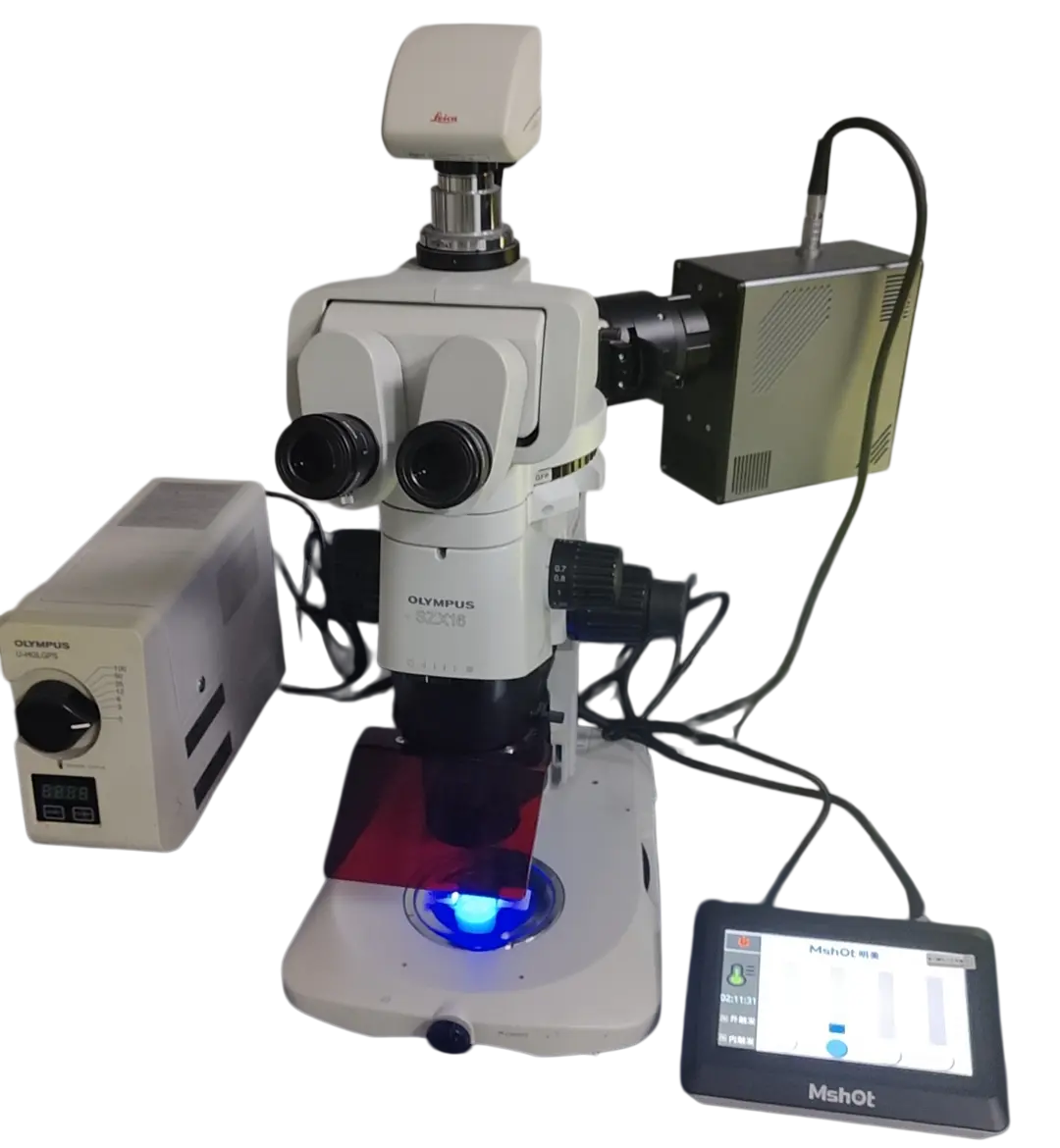

    The stereo digital fluorescence module can match the Galileo optical system stereo microscopes of major brands Olympus, Nikon, Leica and Zeiss, enabling ordinary microscopes to realize fluorescence function without changing the original optical path of the microscope, and easily realize the fluorescence observation function for ordinary microscopes. The dual-color three-channel design can meet the observation needs of up to 3 colors of fluorescence, and can be equipped with relevant bands including V/B/G/Y/R, and a supporting digital display screen design to meet the requirements of quantitative experiments, making the brightness adjustment more controllable. In addition, the light field of view has been expanded, and the compatibility with the microscope is higher than before.

    Feature

    MZX stereo fluorescence module features

    ■ Compact design contains light source and filters in one unit.
    ■ Instant on-off, no need waiting of pre-heating or cooling.
    ■ Unique dual light path design, higher and more uniform brightness.
    ■ Two-color three-channel structure design, standard configuration of two large-view fluorescence channels and one bright field channel for external bright field lighting to pass.
    ■ Digital screen shows light intensity 0~100% of each channel.
    ■ Memory function of last fluorescence lighting intensity individually.
    ■ No requirement of external or added power supply.
    ■ Linked rotating knob move filter cubes and light source by one step
    ■ CE, FCC, EMC, EU, ISO certified.

    MZX-LED stereo fluorescence module classic applications

    Biological live imaging, Nematode, Chick CAM, Drosophila, Zebrafish, Embryo, Forensic investigation.

    Specifications

    Item Specifications
    Filter Cube: B FB-B-M : EX: 470/40nm; DM: 505nm; EM: 530/40nm;
    FL-B-M : EX: 460-490nm; DM: 500nm; EM: 520nm LP;
    Filter Cube: G FB-G-M : EX: 530/40nm; DM: 565nm; EM: 605/55nm;
    FL-G-M : EX: 510-550nm; DM: 570nm; EM: 590nm LP;
    Filter Cube: U FB-U-M : EX: 375/28nm; DM: 415nm; EM: 460/50nm;
    FL-G-M : EX: 330-380nm; DM: 400nm; EM: 420nm LP;
    Filter Cube: Y FL-Y-M : EX: 540-580nm; DM: 600nm; EM: 610 nm LP
    Excitation Light Source 3W LED light source (5W for Y/G), adjustable brightness, visual digital display
    Observation Method Fluorescence / Brightfield switching
    Power Input  DC 12V 2A
