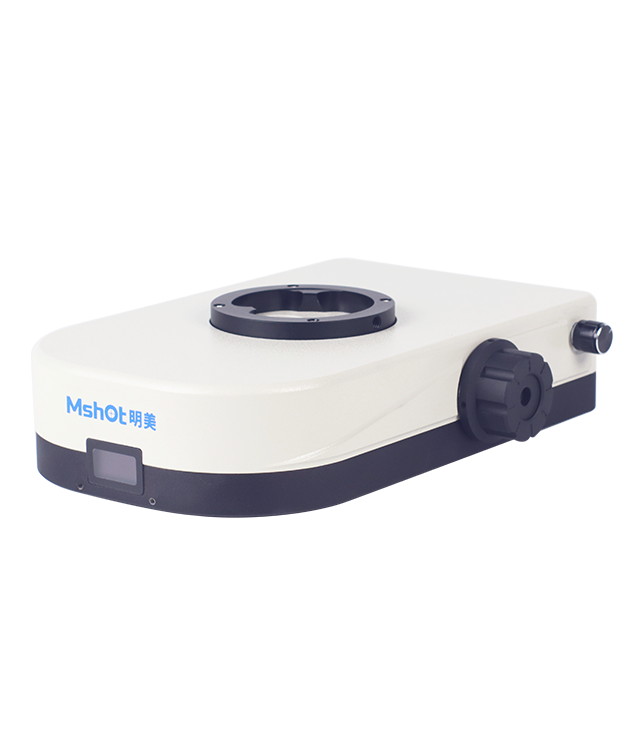

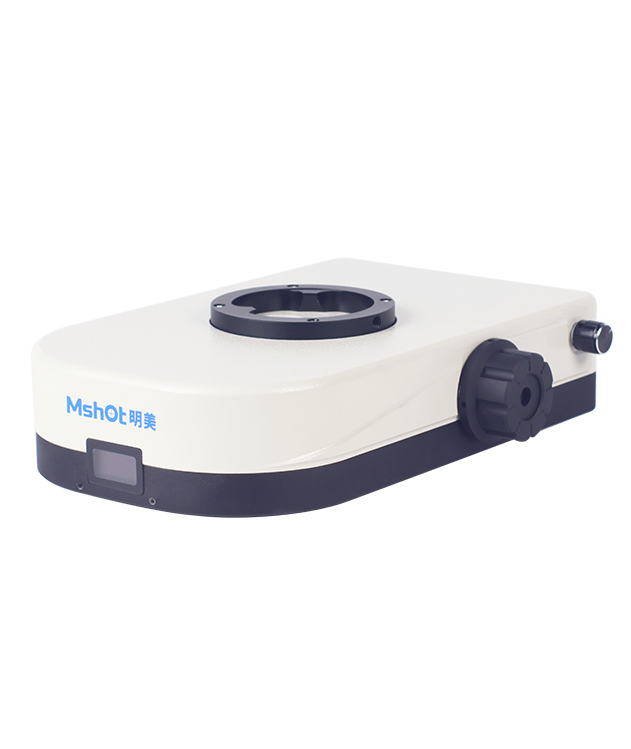

Stereo LED fluorescence module MZX-LED

MZX-LED series LED fluorescent module is designed to upgrade stereo microscope to fluorescence functional.The moudle integrates fluorescence filters and light source in one unit, switch fluorescence observation and bright field observation by wheel. Digital screen shows and remember each channel light intensity.

Share:

Get Exclusive Offers and Updates!

    Description

    The stereo digital fluorescence module can match the Galileo optical system stereo microscopes of major brands Olympus, Nikon, Leica and Zeiss, enabling ordinary microscopes to realize fluorescence function without changing the original optical path of the microscope, and easily realize the fluorescence observation function for ordinary microscopes. The dual-color three-channel design can meet the observation needs of up to 3 colors of fluorescence, and can be equipped with relevant bands including V/B/G/Y/R, and a supporting digital display screen design to meet the requirements of quantitative experiments, making the brightness adjustment more controllable. In addition, the light field of view has been expanded, and the compatibility with the microscope is higher than before.

    Feature

    MZX stereo fluorescence module features

    ■ Compact design contains light source and filters in one unit.
    ■ Instant on-off, no need waiting of pre-heating or cooling.
    ■ Unique dual light path design, higher and more uniform brightness.
    ■ Two-color three-channel structure design, standard configuration of two large-view fluorescence channels and one bright field channel for external bright field lighting to pass.
    ■ Digital screen shows light intensity 0~100% of each channel.
    ■ Memory function of last fluorescence lighting intensity individually.
    ■ No requirement of external or added power supply.
    ■ Linked rotating knob move filter cubes and light source by one step
    ■ CE, FCC, EMC, EU, ISO certified.

    MZX-LED stereo fluorescence module classic applications

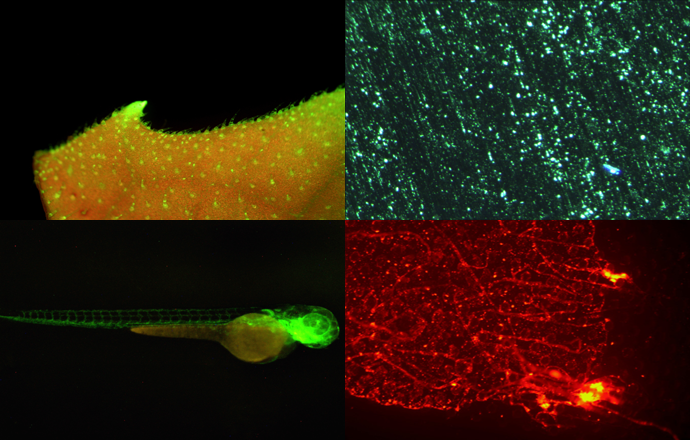

    Biological live imaging, Nematode, Chick CAM, Drosophila, Zebrafish, Embryo, Forensic investigation.

    Specifications

    Models

    Types

    Item No.

    Excitation groups

    Filter Groups

    Compatible microscopes

    2 channels

    MZX-BG-LED / MZX-BY-LED

    BG/BY

    BG/BY

    Olympus SZX

    Nikon  SMZ

    Leica    M

    Zeiss V/Discovery/SV

    Sunny SZX12

    Motic SZM7

    3 channels

    MZX-BGV-LED /MZX-BYU-LED

    BGV/BYV

    BGV/BYV

    Standard LED lamp and Filters

    Model

    LED lamp

    Filter wavelength

    Mainly Applied Fluorochrome

    Color

    Excitation filter

    Dichroic mirror

    Emission filter

    B

    Blue

    475/40nm

    505nmLP

    525/45nm

    GFP/ FITC /EGFP

    G

    Green

    530/40nm

    570nmLP

    590nmLP

    PI / EB / EH /TRITC

    Y

    Yellow

    560/40nm

    600nmLP

    610nmLP

    Mcherry/TexasRed/Alexa Fluor 594

    V

    Violet

    405/30nm

    440nm

    450nmLP

    CFP/part of DAPI

    395/25nm

    425nm

    460/50nm

    BFP/DAPI

    Light source

    Blue: 6W LED for each filter group, 3W per LED lamp

    Green: 12W LED for each filter group, 6W per LED lamp

    Yellow: 10W for each filter group: 5W per LED lamp

    Violet:6W LED for each filter group, 3W per LED lamp

    Observation

    Fluorescence

    Bright field from microscope original light

    Screen

     Digital screen show light intensity and remember light intensity of each color light source

    Operation

    Rotating knob one step move different channels LED light source and filter cubes

    Power control

    Rota-table knob, continuously adjustable brightness

    Input

    DC 12V 2A

    power

    Shell

    High rigid precision-cast aluminium with coating and vents

    Baffle

    Orange color plastic light baffle

    Optional LED lamp and Filters

    LED

    Filter type

    Excitation filter

    Dichroic mirror

    Emission filter

    Blue

    Blue Long-pass

    460-490nm

    >500nm

    510nmLP

    Green

    Green Band-pass

    475/40nm

    >500nm

    535/45nm

    Yellow

    Yellow Band-pass

    560/40nm

    >600nm

    635/60nm

    Violet

    Violet Band-pass

    435/20nm

    >455nm

    480/40nmLP

    Red

    Red Band-pass

    620/50nm

    >655nm

    690/45nm
