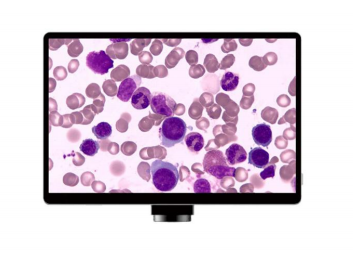

The all-in-one screen camera MD28-A is a microscope camera integrated with an Android-based tablet computer, specially designed for application scenarios such as teaching, demonstration, simple observation, and small laboratories.
The all-in-one screen camera MD28-A is a microscope camera integrated with a tablet computer in Android system. It uses a 1/2 inch sensor, can provide 4K high-definition resolution imaging, and presents it directly on a 10.5 inch touch screen. It supports WiFi and wired network connections and is especially suitable for application scenarios such as teaching,demonstration, simple observation, and small laboratories.
| Sensor | 1/2” CMOS Sensor |
| Effective Pixel | 4K, 3840 x 2160 |
| Video | 1920 x 1080P |
| Image Adjustment | Brightness, Contrast, Saturation, Color Temperature |
| Camera Function | Mirror, Flip, Freeze, Black and White |
| Storage | Still Photo And Video Recording, Picture Preview |
| Marking | Point Coordinates, Crosshairs, Coordinate System, Text Annotations |
| Length Measurement | Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance |
| Geometric Measurement | Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle |
| Geometric Area Measurement | Polygon, Rectangle |
| Screen | 10.5 inch High-Definition ISP Screen 1920 x 1080 |
| Operation System | Android 11 |
| Storage | GB RAM, 16G ROM |
| WIFI | 2.4GHz/5GHz Dual-band WIFI, Support WIFI6 |
| Bluetooth | Bluetooth 5.0 |
| Output | USB3.0*2, USB2.0*1, HDMI, RJ-45 Gigabit Ethernet |
| UI Interface | Support User-friendly Mouse & Keyboard, And Touch Screen Operation |
| Pixel size | 2.0um*2.0um |
| Power | DC-12V/2A |
| Basic Function | Android Interaction, Installed S-Eye2.0 Measure Software |
| Power supply | DC-12V/2A Power Adapter |
| Measurement System | Built-in S-Eye Software |
| Dimension | 238*51*206mm |
| Weight | 0.6kg |
