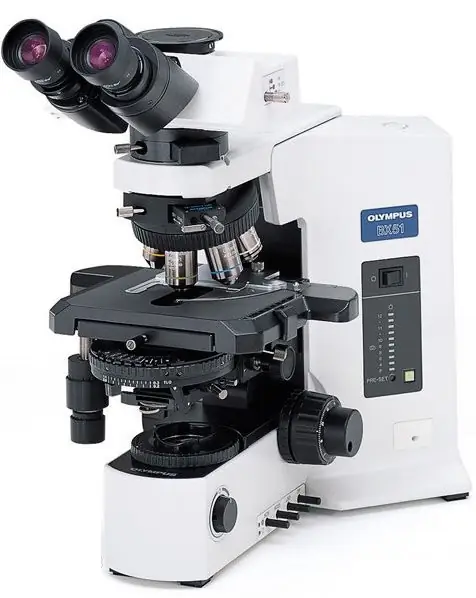

The Olympus BX51 and BX53 microscopes are professional upright microscope platforms widely used in life science research, pathology, and advanced biological imaging applications.

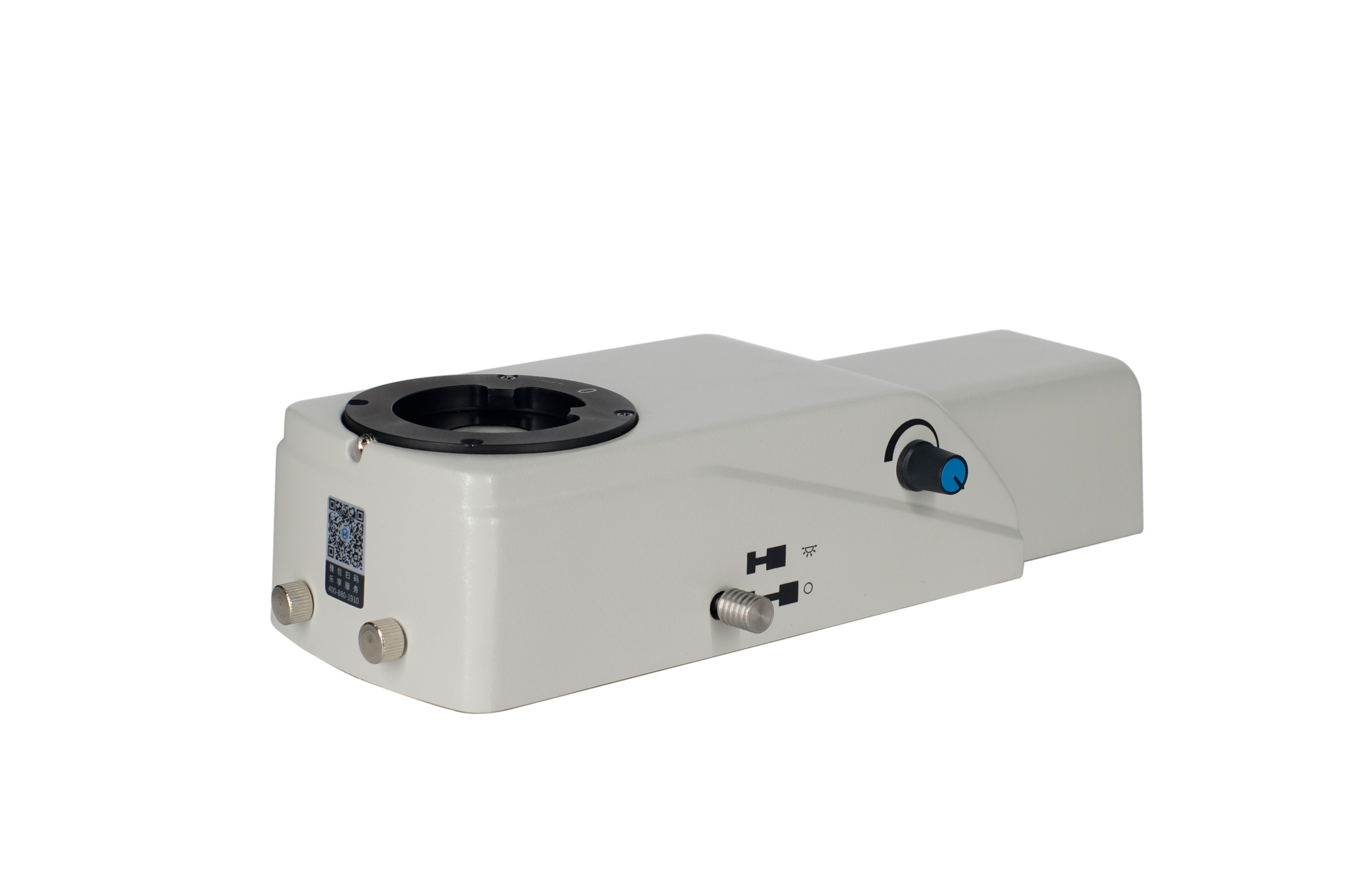

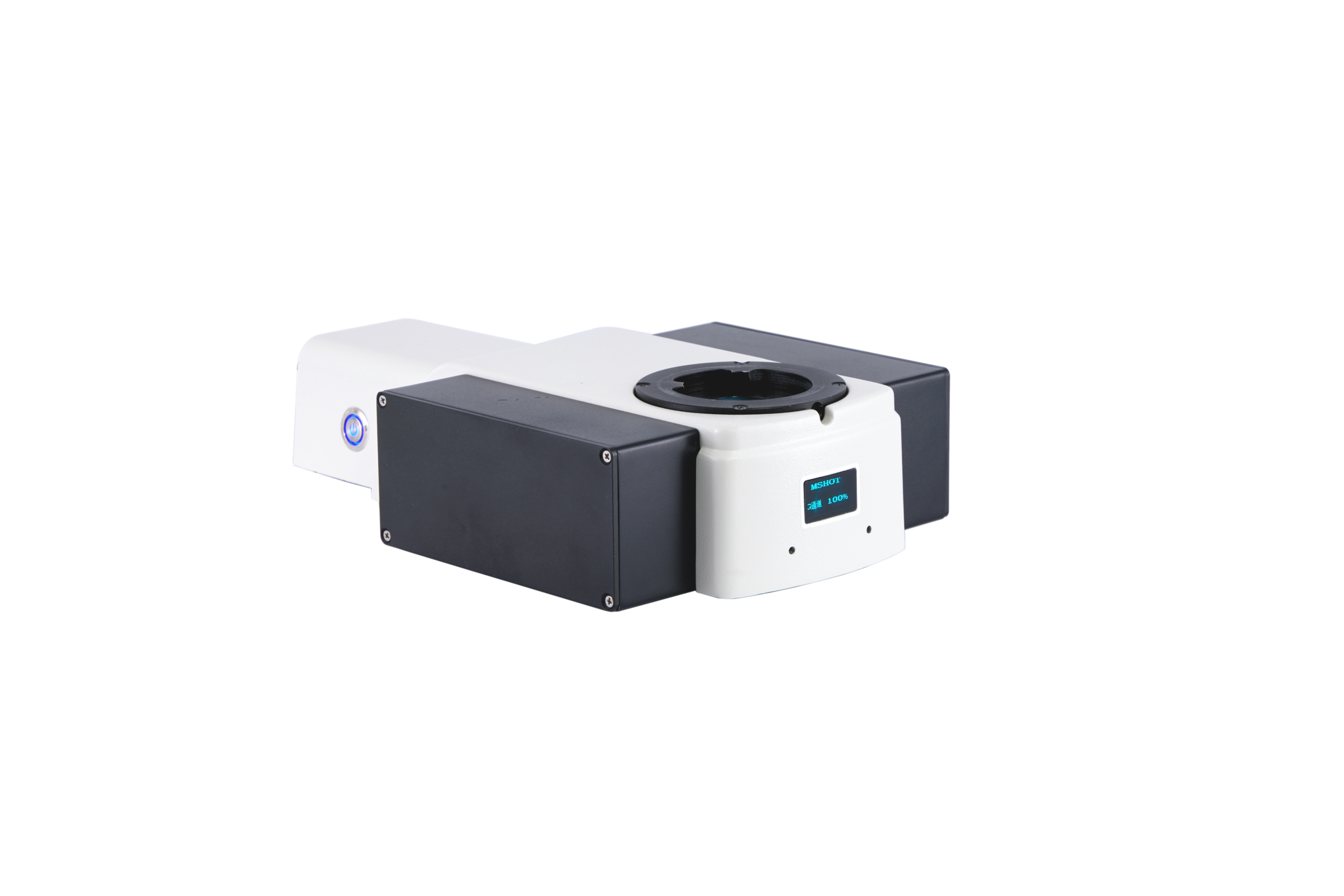

For laboratories that already own BX-series microscopes, adding fluorescence capability can significantly expand research possibilities. The MSHOT MF-LED fluorescence module provides a flexible fluorescence upgrade solution, enabling stable LED illumination for demanding fluorescence observation workflows.
Designed for research environments, MF-LED helps users extend the performance of their existing Olympus BX51 and BX53 microscope systems.
● Designed for Olympus BX51 / BX53 Fluorescence Upgrade
● Support Advanced Biological and Research Applications
● Expand Existing Microscope Capability with LED Fluorescence
● Stable Illumination for Fluorescence Imaging
● Multiple Excitation Options Available
● Low Maintenance Alternative to Mercury Illumination
| Item | Specifications |
| Filter Cube: B | FB-B-M : EX: 470/40nm; DM: 505nm; EM: 530/40nm; |
| FL-B-M : EX: 460-490nm; DM: 500nm; EM: 520nm LP; | |
| Filter Cube: G | FB-G-M : EX: 530/40nm; DM: 565nm; EM: 605/55nm; |
| FL-G-M : EX: 510-550nm; DM: 570nm; EM: 590nm LP; | |
| Filter Cube: U | FB-U-M : EX: 375/28nm; DM: 415nm; EM: 460/50nm; |
| FL-G-M : EX: 330-380nm; DM: 400nm; EM: 420nm LP; | |
| Filter Cube: Y | FL-Y-M : EX: 540-580nm; DM: 600nm; EM: 610 nm LP |
| Excitation Light Source | 3W LED light source (5W for Y/G), adjustable brightness, visual digital display |
| Observation Method | Fluorescence / Brightfield switching |
| Power Input | DC 12V 2A |
