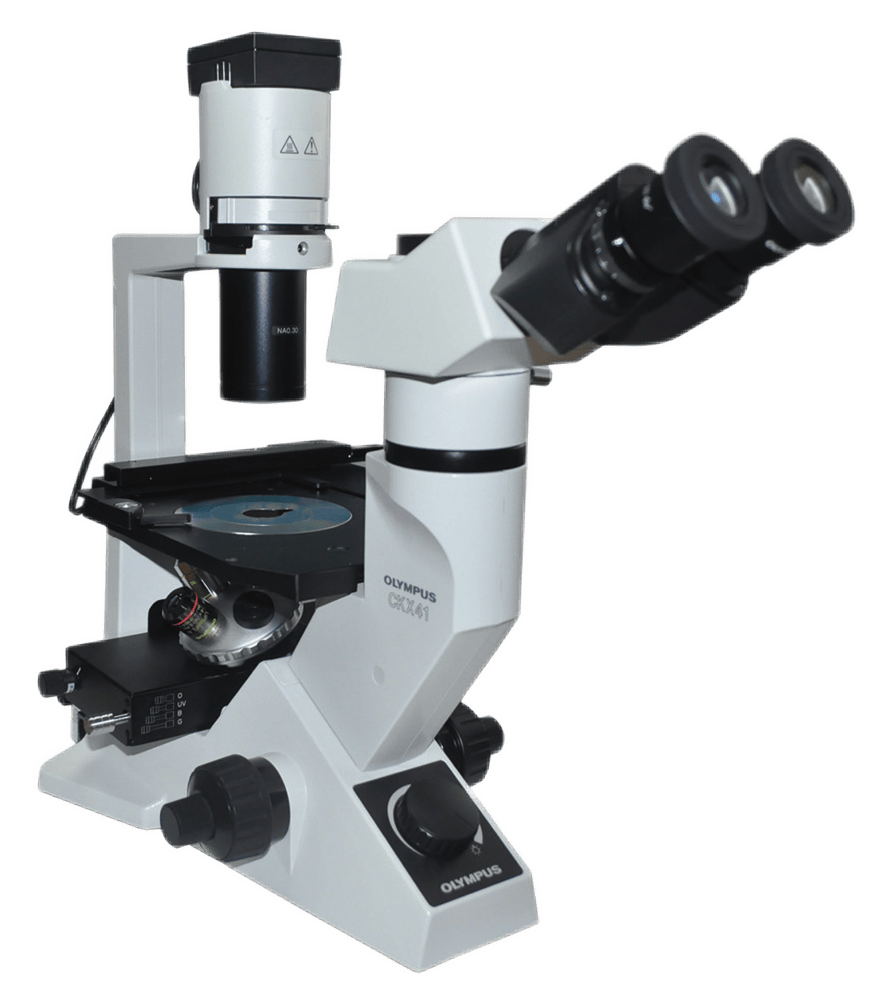

The Olympus CKX41 inverted microscope is widely used for routine cell culture, tissue culture, and live cell observation. As fluorescence techniques become increasingly important in cell biology, laboratories often seek an affordable way to add fluorescence capability to their existing CKX41 systems.

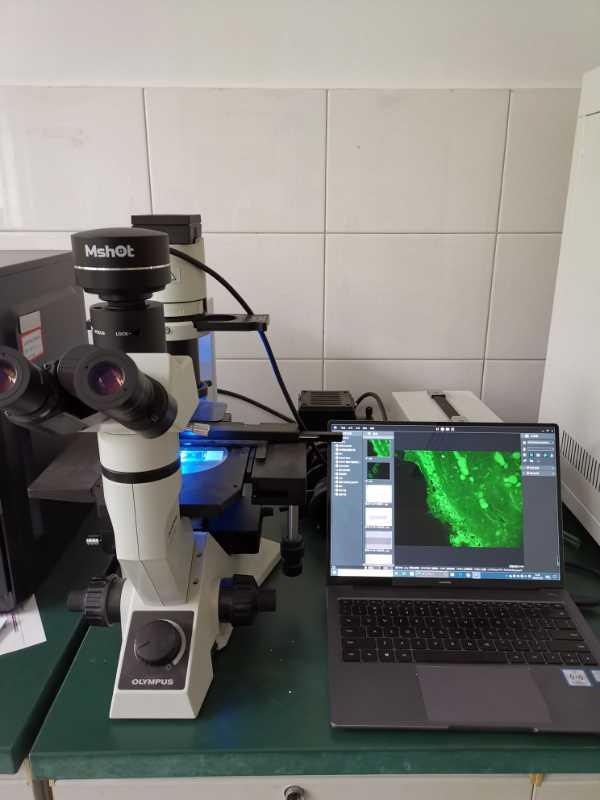

The MSHOT MIF-LED Inverted Fluorescence Module enables CKX41 users to upgrade from brightfield observation to fluorescence imaging while maintaining their existing microscope platform. This solution is ideal for routine laboratory workflows and cell-based research.
● Designed for Olympus CKX41 fluorescence upgrade
● Optimized for cell culture and live cell imaging
● Stable LED fluorescence illumination
● Fast switching between brightfield and fluorescence
● Low-maintenance mercury-free design
● Suitable for routine laboratory applications
| Models | |||
| Item No. | LED lamps | Filter Groups | Compatible microscopes |
| MF-BY-LED | Blue and Yellow | Blue and Yellow | Olympus CX/BX Nikon Eclips/E100/E200/Ci-L/Si Leica DM500/DM750/DM1000 Zeiss PrimoStar / PrimoStar 3 /Axiolab A Sunny EX30 Motic BA310/Panthera C |
| MF-BG-LED | Blue and Green | Blue and Green | |
| MF-BU-LED | Blue and UV | Blue and UV | |
| MF-BYU-LED | Blue, yellow and UV | Blue, Yellow and UV | |
| MF-BGU-LED | Blue, green and UV | Blue, green and UV | |
* Four channels model MF-UBGR / MF-UBYR can be customized
| Standard specification | |||||
| Model | Filter | Filter wavelength | Recommend Application | ||
| Excitation | Dichroic mirror | Emission | |||
| B | Blue | 475/30nm | >505nm | 530/40nm | GFP / FITC /EGFP/ Malaria diagnostic/ Alexa 488 / Cy2@ / Fluo-4 / FluorX@ / Fluoro-Jade |
| Y | Yellow | 560/40nm | >600nm | 610nmLP | mCherry / Texas Red / AlexaFluor 594 |
| U | UV | 355/50nm | >410nm | 420nmLP | DAPI / Hoechst 33342&33258 / AMCA/AMCA-X / Alexa 350 |
| G | Green | 530/40nm | >570nm | 575nmLP | PI / EB / EH /TRITC |
| Light source | Blue &UV: 3W LED cold lamp for each filter group Green/Yellow: 5W LED cold lamp for each filter group | ||||
| Observation | Fluorescence | ||||
| Bright field & phase contrast by microscope original lighting | |||||
| Digital screen | Show light intensity 0~100% and remember each color light source brightness | ||||
| Operation | Lever : B, G, UV/O (bright field) | ||||
| Power control | Rota-table knob, continuously adjustable brightness | ||||
| Input power | 12V 2A | ||||
| Shell | High rigid precision-cast aluminium with coating | ||||
| Light baffle | Orange color plastic light baffle | ||||
| Optional LED lamp and Filters | |||||
| LED | Filter type | Excitation filter | Dichroic mirror | Emission filter | Remark |
| Blue | Long-pass | 475/30nm | >500nm | 510nmLP | Chroma filters are optional |
| Green | Band-pass | 530/40nm | >565nm | 605/55nm | |
| UV | Band-pass | 375/30nm | >415nm | 460/50nm | |
| Violet | Long-pass | 400/40nm | >430nm | 460nmLP | |
| Royal blue | Long-pass | 420-480nm | >500nm | 510nmLP | |
| Red | Band-pass | 620/50nm | >655nm | 692/45nm | |
