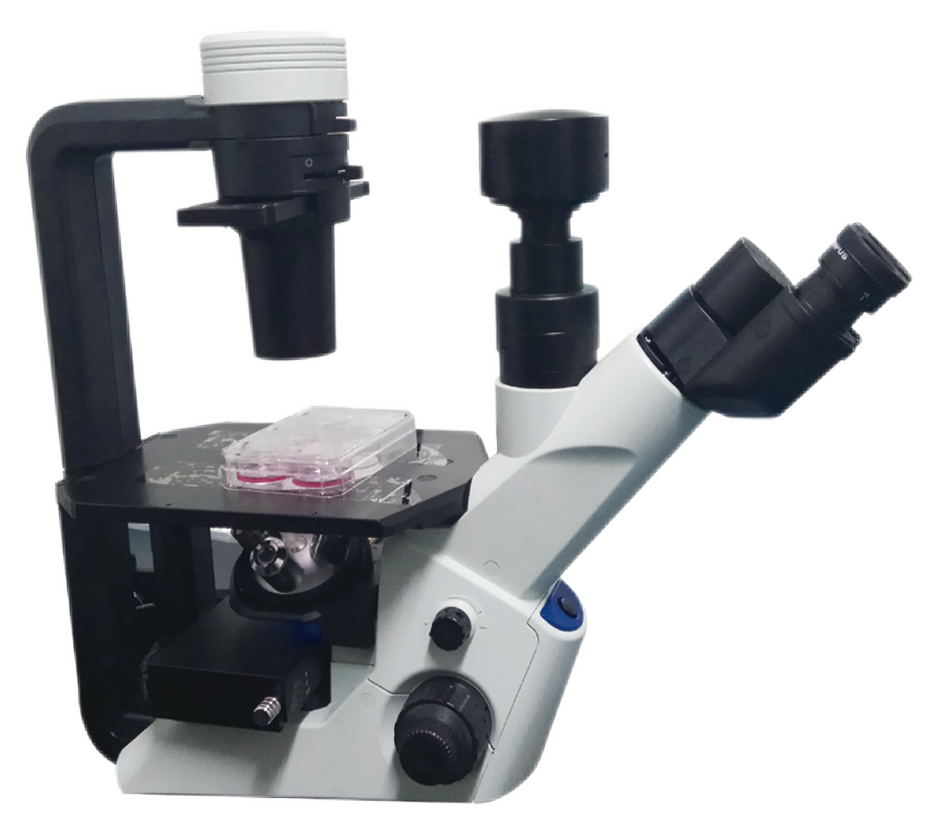

Upgrade Olympus CKX53 Inverted Microscope to LED Fluorescence

The Olympus CKX53 inverted microscope is widely used for cell culture observation, live cell research, and biomedical applications. As fluorescence imaging becomes increasingly important in cell biology workflows, laboratories often need a simple way to enhance their existing inverted microscope.

The MSHOT MIF-LED inverted fluorescence module provides a dedicated fluorescence upgrade solution for Olympus CKX53 microscopes.

Designed for inverted microscopy applications, MIF-LED enables researchers to add fluorescence observation capability for cell culture experiments while maintaining their existing CKX53 platform.

Share:

Get Exclusive Offers and Updates!

    Description

    ● Designed for Olympus CKX53 Fluorescence Upgrade

    ● Optimized for Cell Culture and Live Cell Applications

    ● Add Fluorescence Capability Without Replacing Microscope

    ● Stable LED Illumination with Low Phototoxicity Options

    ● Fast Switching Between Observation Modes

    ● Ideal for Biomedical and Cell Research

    Feature

    MIF-LED inverted fluorescence module features

    ■ Compact design contains light source and filters in one unit.
    ■ Instant on-off, no need waiting of pre-heating or cooling.
    ■ Freely select fluorescence bands and quantities according to needs.
    ■ Fluorescence channel and brightness display function, display working status.
    ■ Brightness memory function, can remember the last used brightness.
    ■ Digital screen shows light intensity 0~100%
    ■ Light source synchronous switching with filter groups.
    ■ No requirement of external or added power supply.
    ■ CE, FCC, EMC, EU, ISO certified.

    MIF-LED inverted fluorescence module classic applications

    ■ Live cells culture
    ■ Chromosome analysis in cytogenetics
    ■ Histochemistry in neural tissue and localization of proteins and nucleic acids
    ■ Location and quantification of certain substances in tissues and cells
    ■ Can measure the content of some components such as protein, DNA, RNA, etc. in cells

    Detail:

    Specifications

    Item Specifications
    Filter Cube: B FB-B-M : EX: 470/40nm; DM: 505nm; EM: 530/40nm;
    FL-B-M : EX: 460-490nm; DM: 500nm; EM: 520nm LP;
    Filter Cube: G FB-G-M : EX: 530/40nm; DM: 565nm; EM: 605/55nm;
    FL-G-M : EX: 510-550nm; DM: 570nm; EM: 590nm LP;
    Filter Cube: U FB-U-M : EX: 375/28nm; DM: 415nm; EM: 460/50nm;
    FL-G-M : EX: 330-380nm; DM: 400nm; EM: 420nm LP;
    Filter Cube: Y FL-Y-M : EX: 540-580nm; DM: 600nm; EM: 610 nm LP
    Excitation Light Source 3W LED light source (5W for Y/G), adjustable brightness, visual digital display
    Observation Method Fluorescence / Brightfield switching
    Power Input  DC 12V 2A
