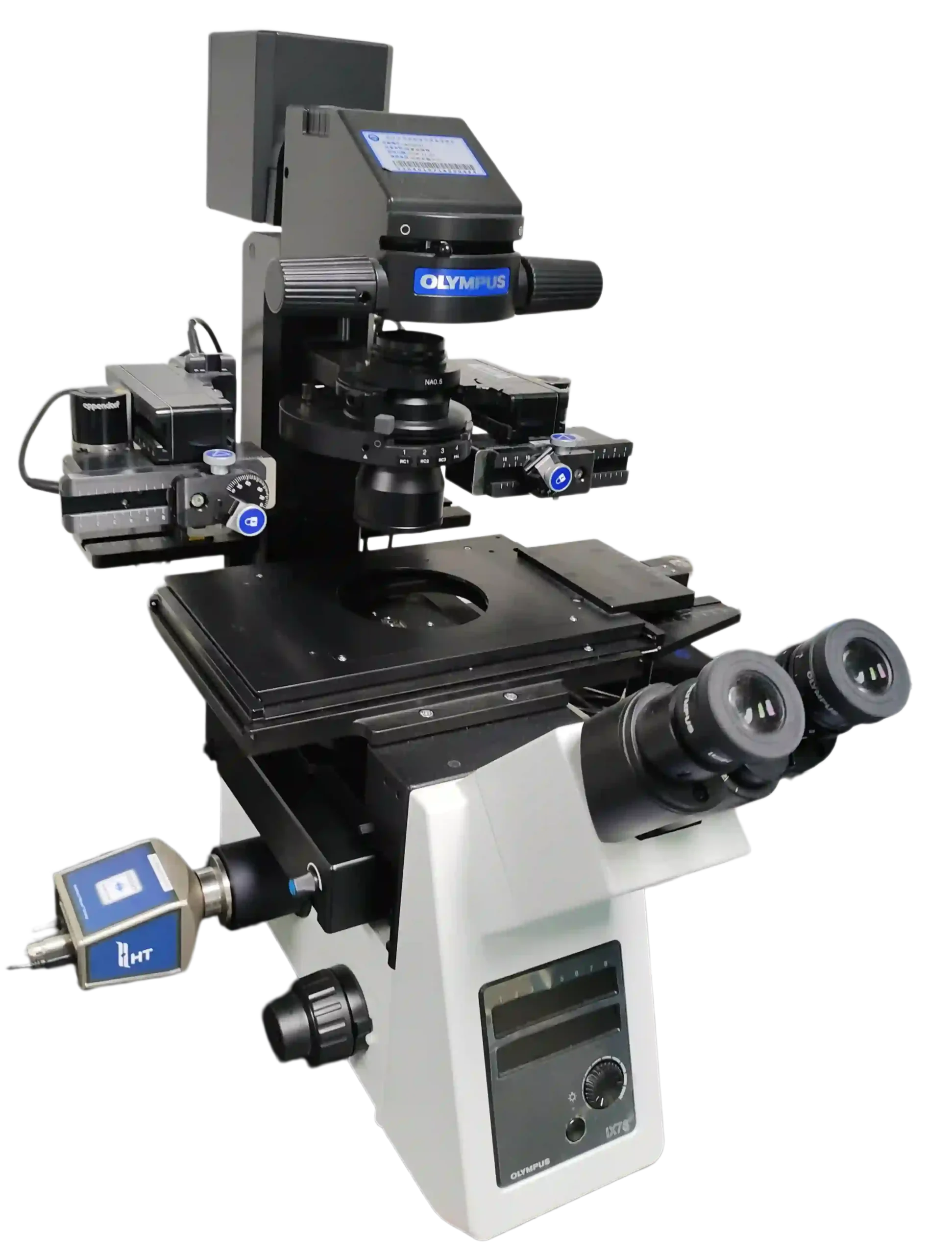

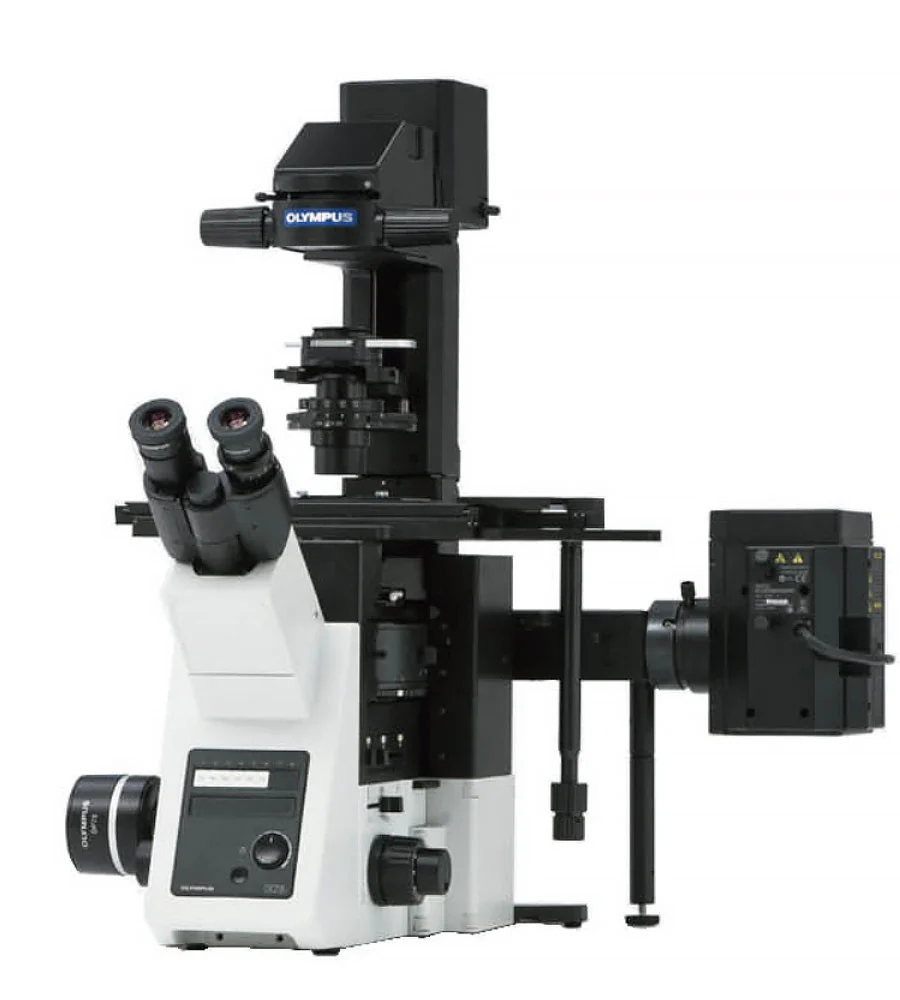

The Olympus IX73 inverted microscope is widely used in advanced life science research, including cell biology, drug discovery, and fluorescence imaging applications.

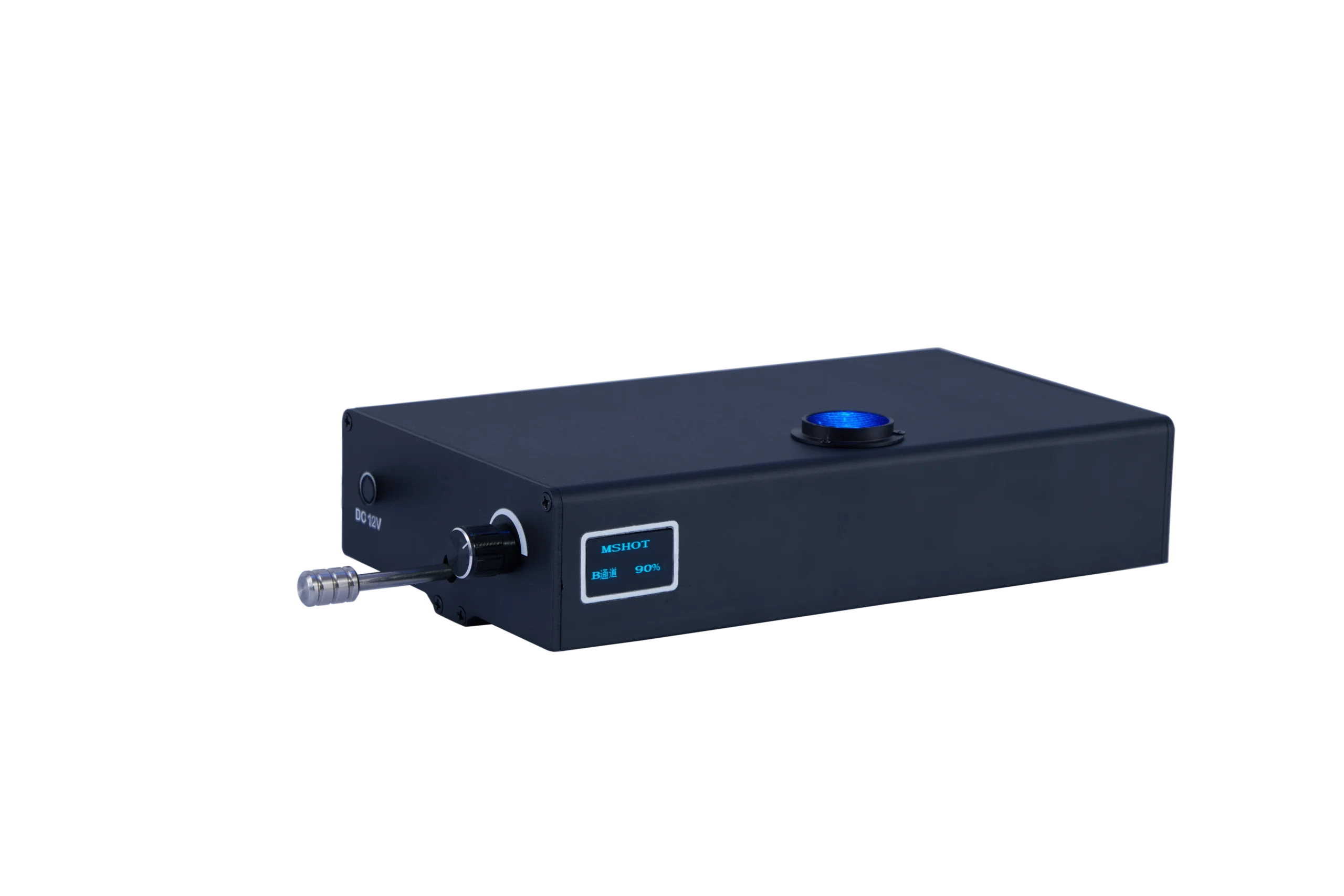

The MSHOT MIF-LED inverted fluorescence module provides an efficient upgrade solution for IX73 users who need reliable fluorescence illumination while keeping their existing research microscope platform.
With stable LED excitation and flexible configuration options, MIF-LED helps researchers enhance fluorescence imaging capability for demanding biological experiments.
● Designed for Olympus IX73 Fluorescence Upgrade
● Support Advanced Cell and Biomedical Research Applications
● Stable and Uniform Fluorescence Illumination
● Compatible with Existing Inverted Microscope Workflows
● Long-Life Mercury-Free LED Technology
● Flexible Fluorescence Configuration Options
| Item | Specifications |
| Filter Cube: B | FB-B-M : EX: 470/40nm; DM: 505nm; EM: 530/40nm; |
| FL-B-M : EX: 460-490nm; DM: 500nm; EM: 520nm LP; | |
| Filter Cube: G | FB-G-M : EX: 530/40nm; DM: 565nm; EM: 605/55nm; |
| FL-G-M : EX: 510-550nm; DM: 570nm; EM: 590nm LP; | |
| Filter Cube: U | FB-U-M : EX: 375/28nm; DM: 415nm; EM: 460/50nm; |
| FL-G-M : EX: 330-380nm; DM: 400nm; EM: 420nm LP; | |
| Filter Cube: Y | FL-Y-M : EX: 540-580nm; DM: 600nm; EM: 610 nm LP |
| Excitation Light Source | 3W LED light source (5W for Y/G), adjustable brightness, visual digital display |
| Observation Method | Fluorescence / Brightfield switching |
| Power Input | DC 12V 2A |
