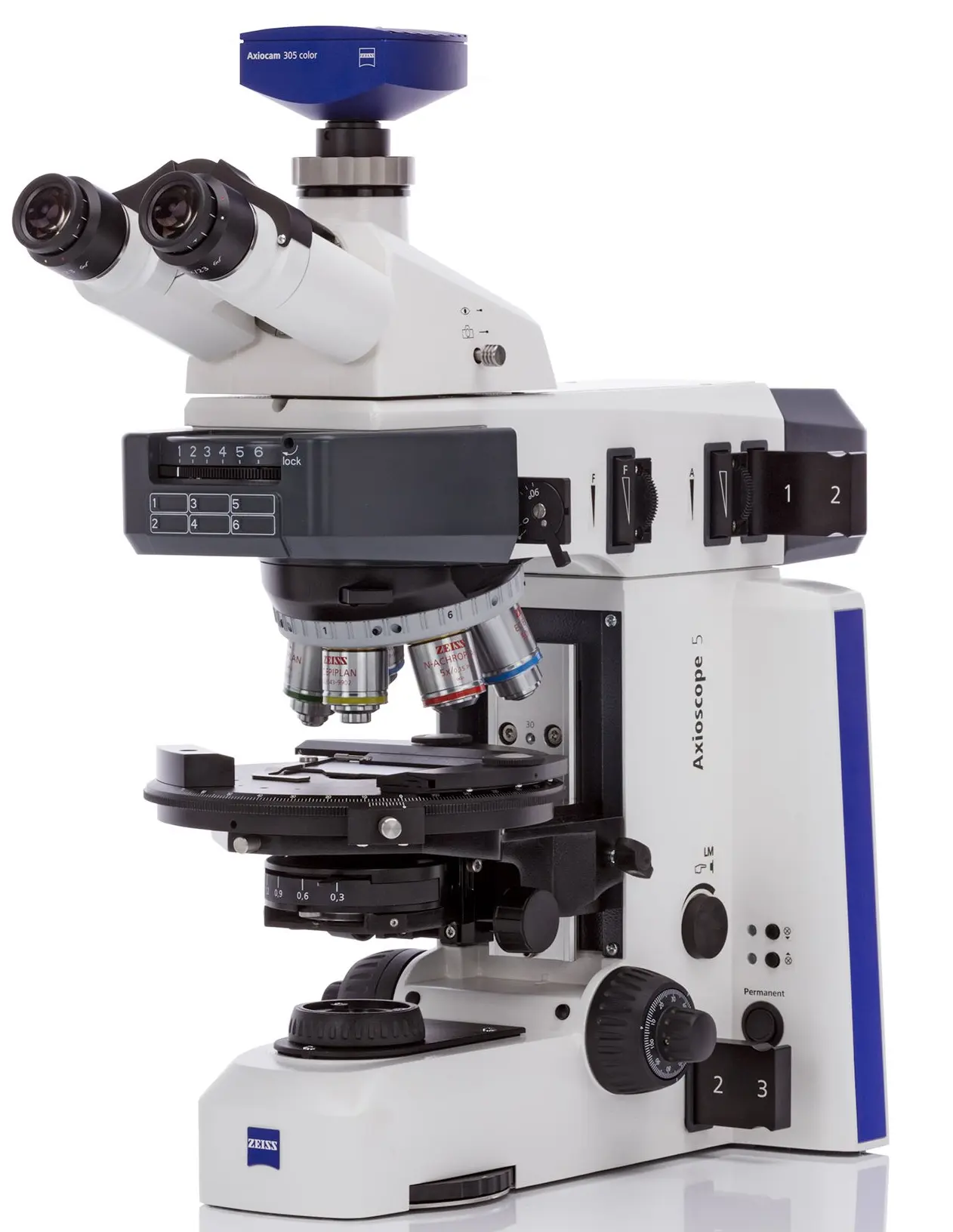

MF-LED Single & Multi-Channels LED Fluorescence Module for Zeiss Axioscope 5 Upright Microscope
MF-LED Single & Multi-Channels LED Fluorescence Module for Zeiss Axioscope 5 Upright Microscope - Image 2

MF-LED Single & Multi-Channels LED Fluorescence Module for Zeiss Axioscope 5 Upright Microscope

The Mshot fluorescence module perfectly upgrades the Zeiss Axioscope 5, delivering bright, uniform fluorescence illumination for its core applications in clinical pathology, histology, and cell biology research. Compatible with both singlechannel and multichannel configurations, it enhances the Axioscope 5’s versatility for immunofluorescence, FISH, and livecell imaging in biomedical and life science laboratories.

Categories: , ,
Share:

Get Exclusive Offers and Updates!

    Description

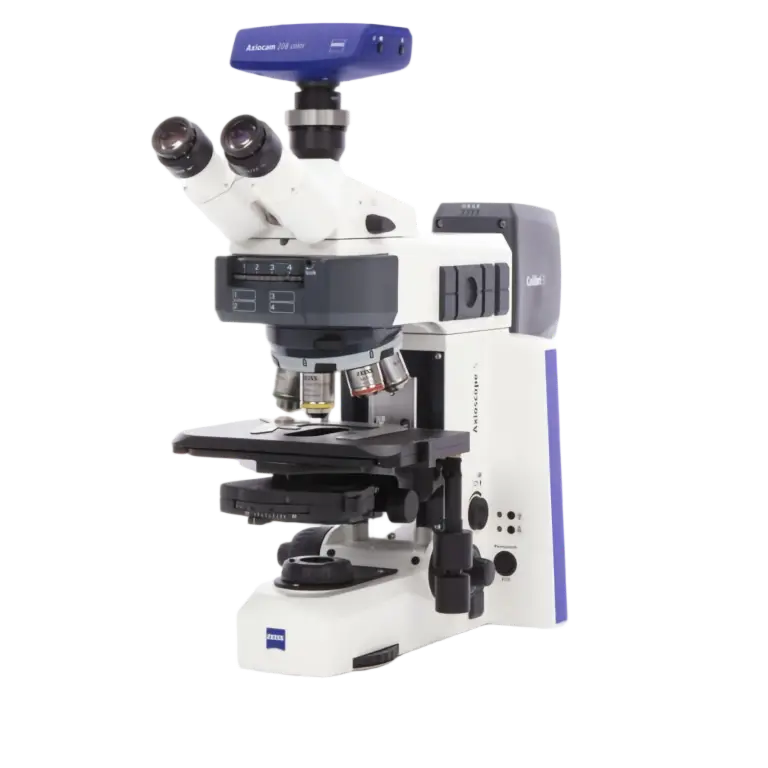

    MSHOT Fluorescence Module for Zeiss Axioscope 5  | Upgrade Kit

    The fluorescence module  adopts an integrated optical design, supporting multiple fluorescence bands of B, G and UV. Equipped with a high-brightness LED optical system, it features instant start-up without preheating and ultra-long service life, effectively reducing later maintenance costs. The built-in digital display allows stepless brightness adjustment and precise light intensity control, fully meeting the requirements of quantitative fluorescence experiments.

    Feature

    Single channel epi-illuminating fluorescence microscope

    MF-LED Single & Multi-Channels LED Fluorescence
    Module for Nikon Eclipse E100 Educational Microscope

    ■ Compact design contains light source and filters in one unit.
    ■ Instant on-off, no need waiting of pre-heating or cooling.
    ■ Light source synchronous switching with filter groups via slider / lever.
    ■ No requirement of external or added power supply.
    ■ LED has a long service life and low labor maintenance cost.
    ■ The original transmitted light of the microscope is retained.
    ■ CE,FCC,EMC,EU and ISO certified.
    Immunofluorescence imaging under mshot microscope

    MF-LED Single & Multi-Channels LED Fluorescence
    Module for Nikon Eclipse E100 Educational Microscope classic applications

    ■ Botany
    ■ Clinical diagnose
    ■ Immnuofluorescence
    ■ Tuberculosis sputum slide
    ■ Skin and foot fungus
    ■ Food microorganism
    ■ Respiratory disease
    ■ Sperm analysis
    ■ Fluorochrome stained slide

    Specifications

    Item Specifications
    Filter Cube: B FB-B-M : EX: 470/40nm; DM: 505nm; EM: 530/40nm;
    FL-B-M : EX: 460-490nm; DM: 500nm; EM: 520nm LP;
    Filter Cube: G FB-G-M : EX: 530/40nm; DM: 565nm; EM: 605/55nm;
    FL-G-M : EX: 510-550nm; DM: 570nm; EM: 590nm LP;
    Filter Cube: U FB-U-M : EX: 375/28nm; DM: 415nm; EM: 460/50nm;
    FL-G-M : EX: 330-380nm; DM: 400nm; EM: 420nm LP;
    Filter Cube: Y FL-Y-M : EX: 540-580nm; DM: 600nm; EM: 610 nm LP
    Excitation Light Source 3W LED light source (5W for Y/G), adjustable brightness, visual digital display
    Observation Method Fluorescence / Brightfield switching
    Power Input  DC 12V 2A
