Description

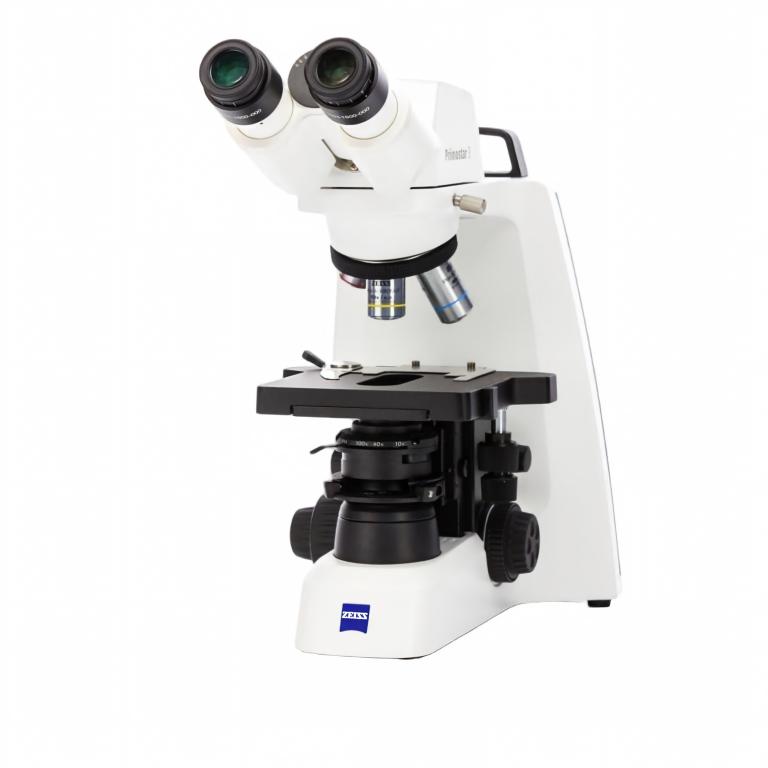

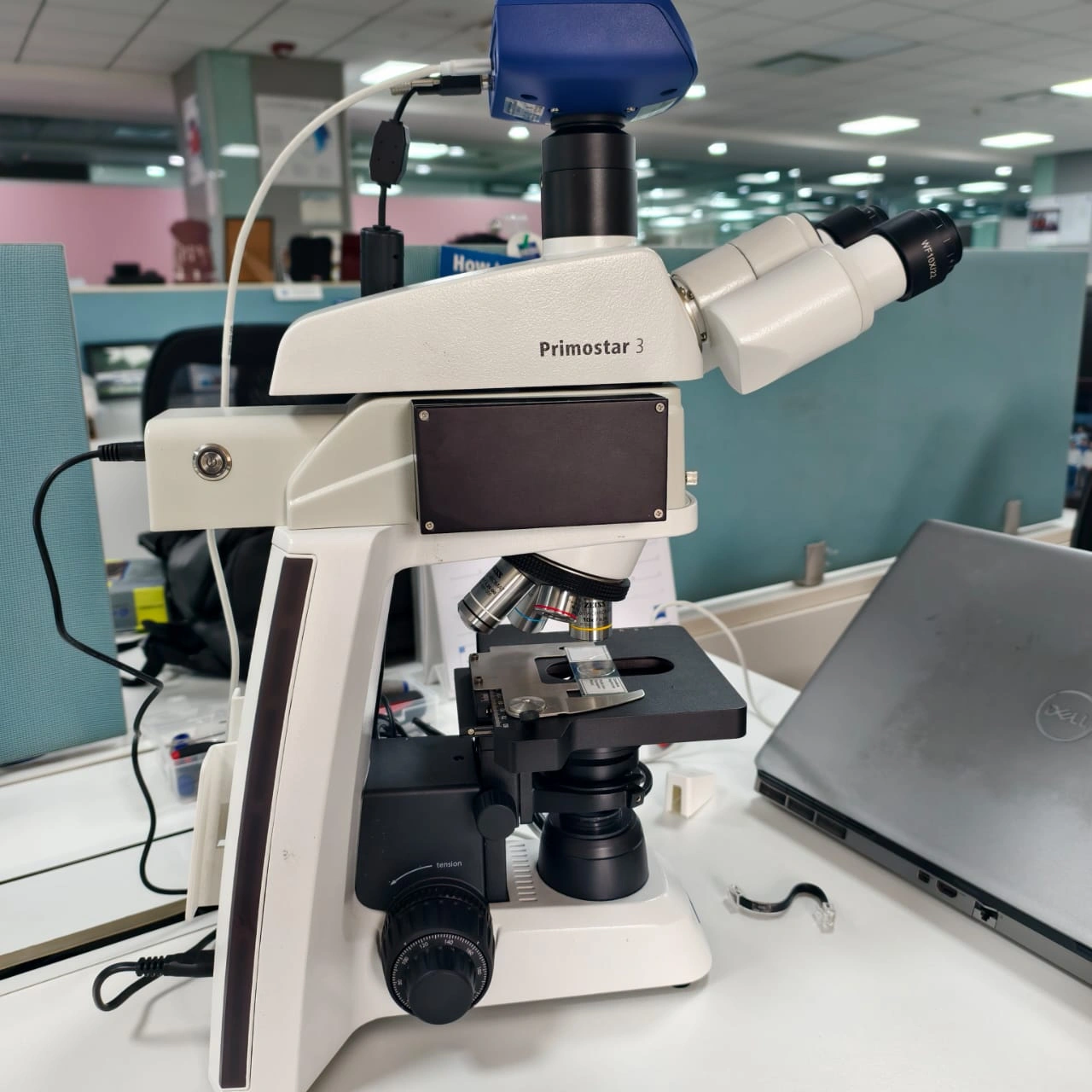

MSHOT Fluorescence Module for Zeiss Primostar 3 | Upgrade Kit
Mshot fluorescence module is available in both single-channel and multi-channel versions to meet diverse experimental and budget demands. Adopting high-brightness LED optical design, it supports multiple common fluorescence bands including B, G and UV, with instant-on operation and no warm-up required. Featuring uniform large-field excitation, high signal-to-noise ratio and stepless digital brightness adjustment, it perfectly fits for routine teaching, clinical pathology, microbiology and life science fluorescence observation
Specifications
MF-LED Single-Channels LED Fluorescence Module
| B |
Blue |
475/30nm >505nm 510nmLP |
GFP / FITC /EGFP/ Malaria diagnostic/ Alexa 488 / Cy2@ / Fluo-4 / FluorX@ / Fluoro-Jade |
| B2 |
Royal blue |
420-480nm |
>500nm |
510nmLP |
Tuberculosis Diagnostic |
| G |
Green |
530/40nm |
>570nm |
575nmLP |
PI / EB / EH /TRITC |
| Y |
Yellow |
560/40nm |
>600nm |
610nmLP |
mCherry / Texas Red / AlexaFluor 594 |
| U |
UV |
355/50nm |
>410nm |
420nmLP |
DAPI / Hoechst 33342&33258 / AMCA/AMCA-X / Alexa 350 |
| Light source |
Blue &UV: 3W LED cold lamp for each filter group Green/Yellow: 5W LED cold lamp for each filter group |
| Observation |
Fluorescence
Bright field & phase contrast by microscope original lighting |
| Operation |
Lever : B, G/Y, UV/O (bright field) |
| Power control |
Rota-table knob, continuously adjustable brightness |
| Input power |
12V 2A |
| Shell |
High rigid precision-cast aluminium with coating |
| Light baffle |
Orange color plastic light baffle |
MF-LED Multi-Channels LED Fluorescence Module
| B |
Blue |
475/30nm >505nm 530/40nm |
GFP / FITC / EGFP/ Malaria diagnostic/ Alexa 488 / Cy2@ / Fluo-4 / FluorX@ / Fluoro-Jade |
| Y |
Yellow |
560/40nm |
>600nm |
610nmLP |
mCherry / Texas Red / AlexaFluor 594 |
| U |
UV |
355/50nm |
>410nm |
420nmLP |
DAPI / Hoechst 33342&33258 / AMCA/AMCA-X / Alexa 350 |
| G |
Green |
530/40nm |
>570nm |
575nmLP |
PI / EB / EH /TRITC |
| Light source |
Blue &UV: 3W LED cold lamp for each filter group
Green/Yellow: 5W LED cold lamp for each filter group |
| Observation |
Fluorescence
Bright field & phase contrast by microscope original lighting |
| Digital screen |
Show light intensity 0~100% and remember each color light source brightness |
| Operation |
Lever : B, G, UV/O (bright field) |
| Power control |
Rota-table knob, continuously adjustable brightness |
| Input power |
12V 2A |
| Shell |
High rigid precision-cast aluminium with coating |
| Light baffle |
Orange color plastic light baffle |
