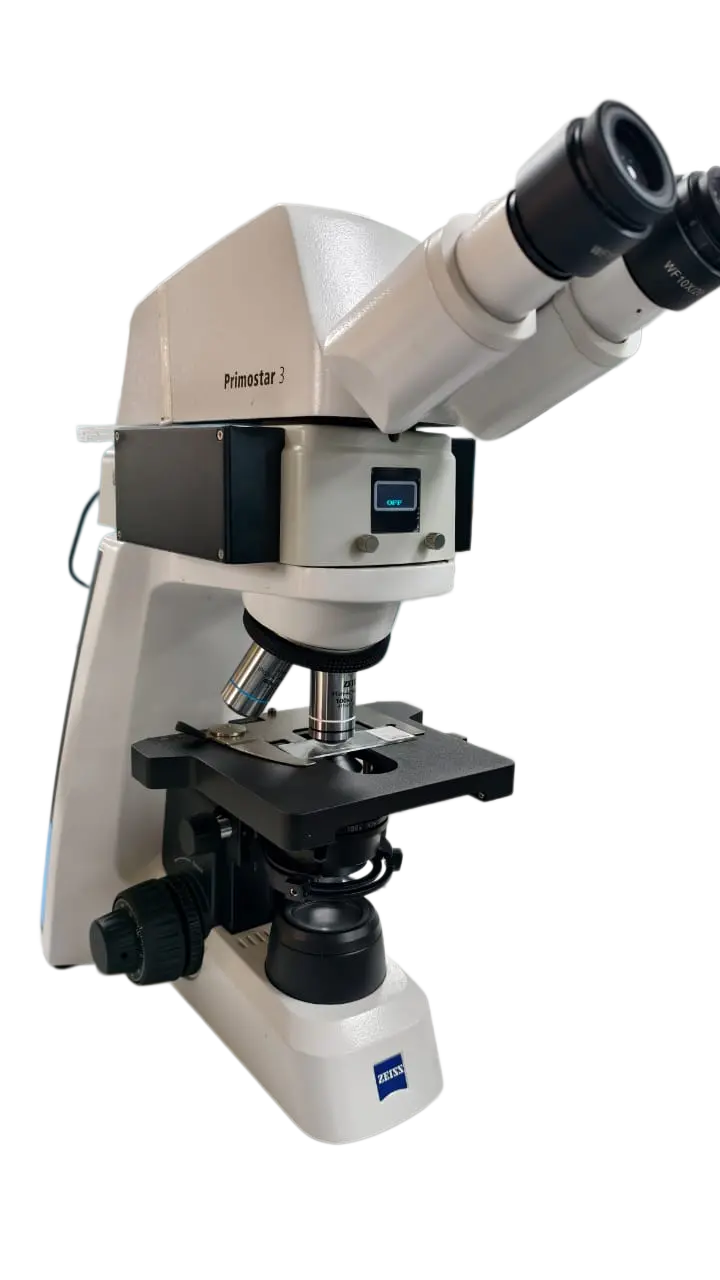

Upgrade ZEISS Primostar 3 Microscope to LED Fluorescence
Upgrade ZEISS Primostar 3 Microscope to LED Fluorescence - Image 2
Upgrade ZEISS Primostar 3 Microscope to LED Fluorescence - Image 3

Upgrade ZEISS Primostar 3 Microscope to LED Fluorescence

The ZEISS Primostar 3 microscope is widely used in universities, teaching laboratories, and routine biological applications. As educational microscopy develops, users increasingly require fluorescence capability for advanced demonstrations and biological studies.

The MSHOT MF-LED fluorescence module provides an efficient fluorescence upgrade solution for ZEISS Primostar 3 microscopes.

By adding LED fluorescence illumination, institutions can expand their existing Primostar 3 systems and provide more comprehensive microscopy training and research capabilities.

Categories: , ,
Share:

Get Exclusive Offers and Updates!

    Description

    ● Designed for ZEISS Primostar 3 Fluorescence Upgrade

    ● Enhance Teaching Microscopy with Fluorescence Capability

    ● Easy Upgrade Without Replacing Microscope System

    ● Stable and Uniform LED Illumination

    ● Mercury-Free Long-Life Light Source

    ● Suitable for Education and Basic Research Applications

    Feature

    Single channel epi-illuminating fluorescence microscope

    MF-LED Single & Multi-Channels LED Fluorescence
    Module for Nikon Eclipse E100 Educational Microscope

    ■ Compact design contains light source and filters in one unit.
    ■ Instant on-off, no need waiting of pre-heating or cooling.
    ■ Light source synchronous switching with filter groups via slider / lever.
    ■ No requirement of external or added power supply.
    ■ LED has a long service life and low labor maintenance cost.
    ■ The original transmitted light of the microscope is retained.
    ■ CE,FCC,EMC,EU and ISO certified.
    Immunofluorescence imaging under mshot microscope

    MF-LED Single & Multi-Channels LED Fluorescence
    Module for Nikon Eclipse E100 Educational Microscope classic applications

    ■ Botany
    ■ Clinical diagnose
    ■ Immnuofluorescence
    ■ Tuberculosis sputum slide
    ■ Skin and foot fungus
    ■ Food microorganism
    ■ Respiratory disease
    ■ Sperm analysis
    ■ Fluorochrome stained slide

    Specifications

    Item Specifications
    Filter Cube: B FB-B-M : EX: 470/40nm; DM: 505nm; EM: 530/40nm;
    FL-B-M : EX: 460-490nm; DM: 500nm; EM: 520nm LP;
    Filter Cube: G FB-G-M : EX: 530/40nm; DM: 565nm; EM: 605/55nm;
    FL-G-M : EX: 510-550nm; DM: 570nm; EM: 590nm LP;
    Filter Cube: U FB-U-M : EX: 375/28nm; DM: 415nm; EM: 460/50nm;
    FL-G-M : EX: 330-380nm; DM: 400nm; EM: 420nm LP;
    Filter Cube: Y FL-Y-M : EX: 540-580nm; DM: 600nm; EM: 610 nm LP
    Excitation Light Source 3W LED light source (5W for Y/G), adjustable brightness, visual digital display
    Observation Method Fluorescence / Brightfield switching
    Power Input  DC 12V 2A
