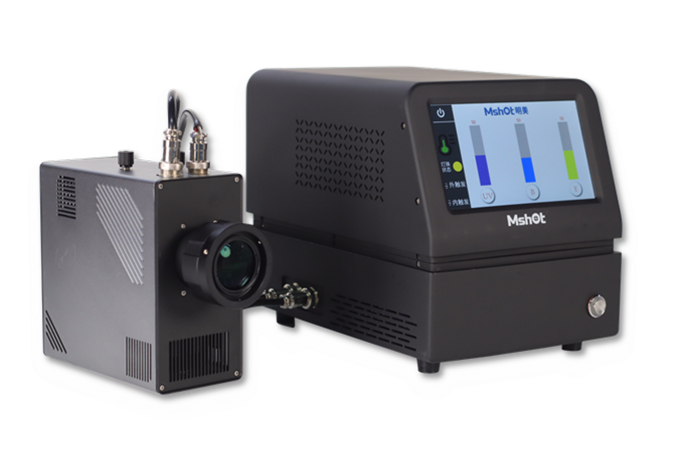

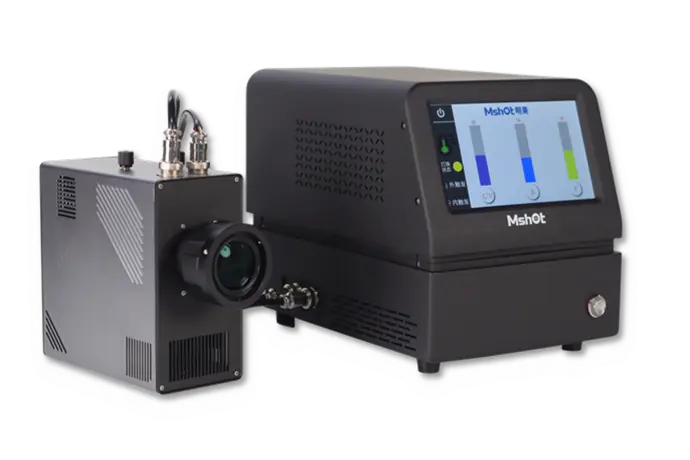

High Efficiency Fluorescence Light Source MG-150

The MG-150 High-Efficiency Fluorescent Light Source is ideal for fluorescent microscopes. It delivers superior luminous efficiency, ensures reliable experimental output, and produces ultra-clear fluorescent specimen images.
Featuring instant on/off operation, touchscreen control and USB programmable control, it is equipped with smart screen off, brightness memory and other practical functions, greatly boosting the efficiency of fluorescence experiments.

Categories: Fluorescence modules & LED illuminators, Stereo-fluorescence module MZX-LED

Description

■ Long lifespan & cost-effective light source

■ Intelligent integrated display, internal/external trigger control, strong compatibility for secondary development

■ High-brightness multi-band light source with independent and precise adjustment

Feature

Long-lifespan & Cost-effective Light Source：

High-power LED with adaptive cooling, quiet & stable. 50,000-hour lifespan, low maintenance. Cost-effective, safe and pollution-free vs mercury/xenon lamps.

Intelligent Integrated Display, Internal/External Trigger Control, High Adaptability for Development：

Real-time lamp & temperature monitoring. Multi-trigger/strobe functions, compatible with software, cameras and major microscopes.

High-brightness multi-band light source with independent and precise regulation：

High-brightness multi-channel fluorescence source. 0-100% precise dimming for full spectrum. Multi-channel synchronous output, custom wavelengths optional.

Applications

Industrial Materials and Chemical Analysis

Sample images:

Specifications

Item	Parameter

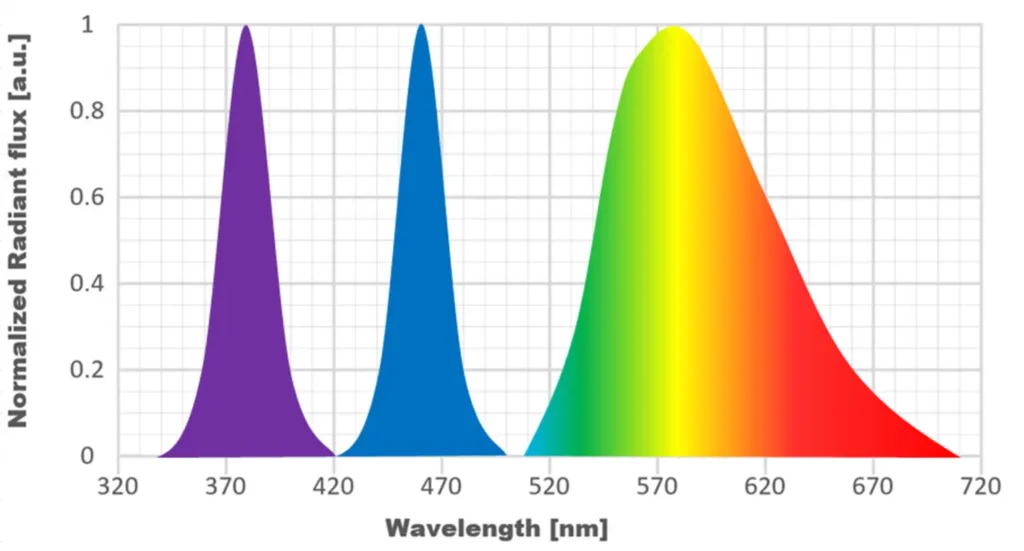

Output Spectrum	UV: 385 nm ± 20 nm B: 460 nm ± 20 nm RGY: 580 nm ± 50 nm
Output Divergence Angle	7° @ UV/B 1.5° @ RGY
BPP Value	130 mm ±10 mm × mrad @ RGY
Equivalent Light Source Spot	0.5 mm @ RGY
Power Input	220 V
Total Power	155 W ± 10 W
Control Mode	3-channel independent control; range: 0–100%, accuracy: 1%
Cooling Method	Air cooling
Operating Temperature	5 °C–55 °C
