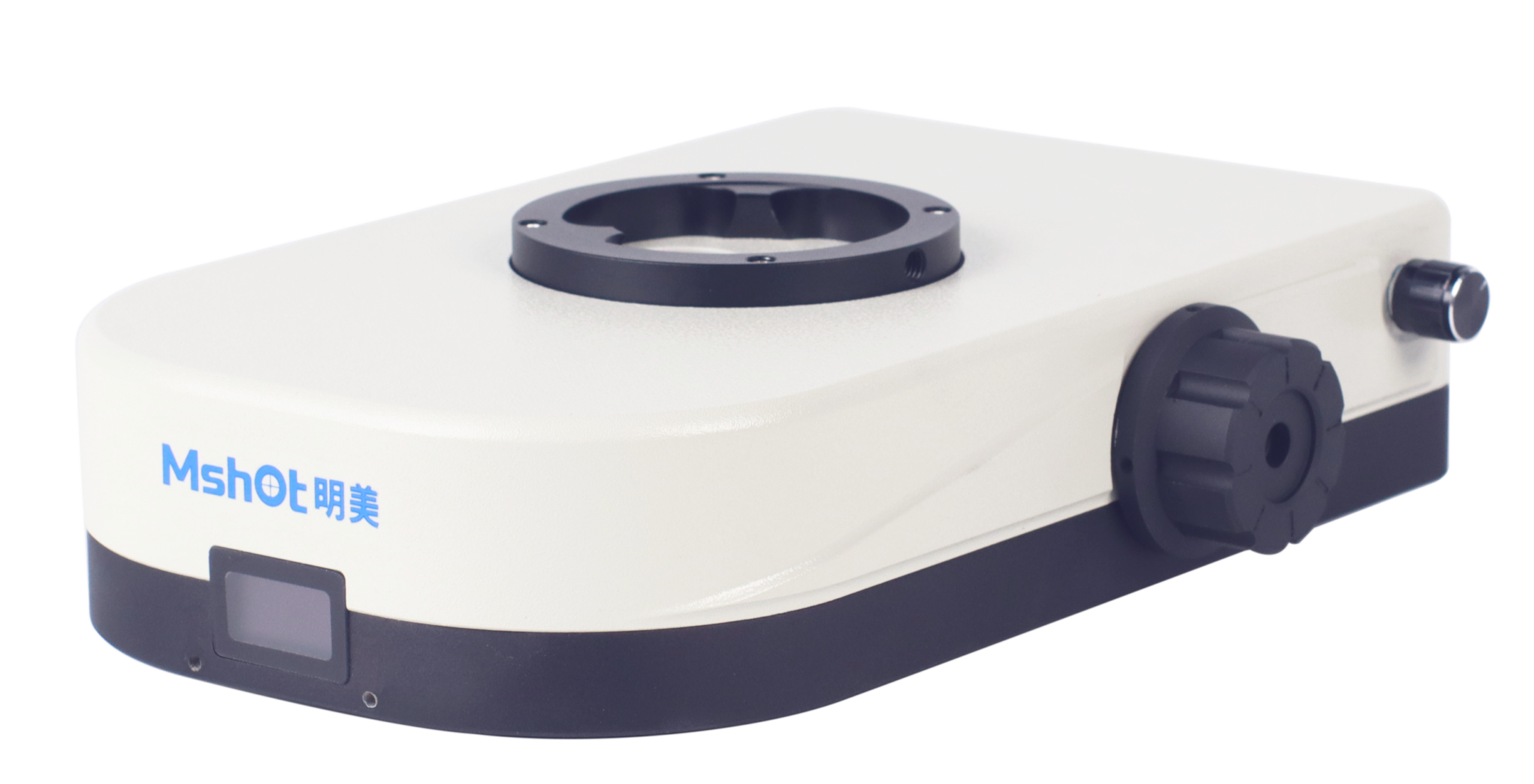

MZX-LED Fluorescence Module for Olympus SZX10 Stereo Microscope

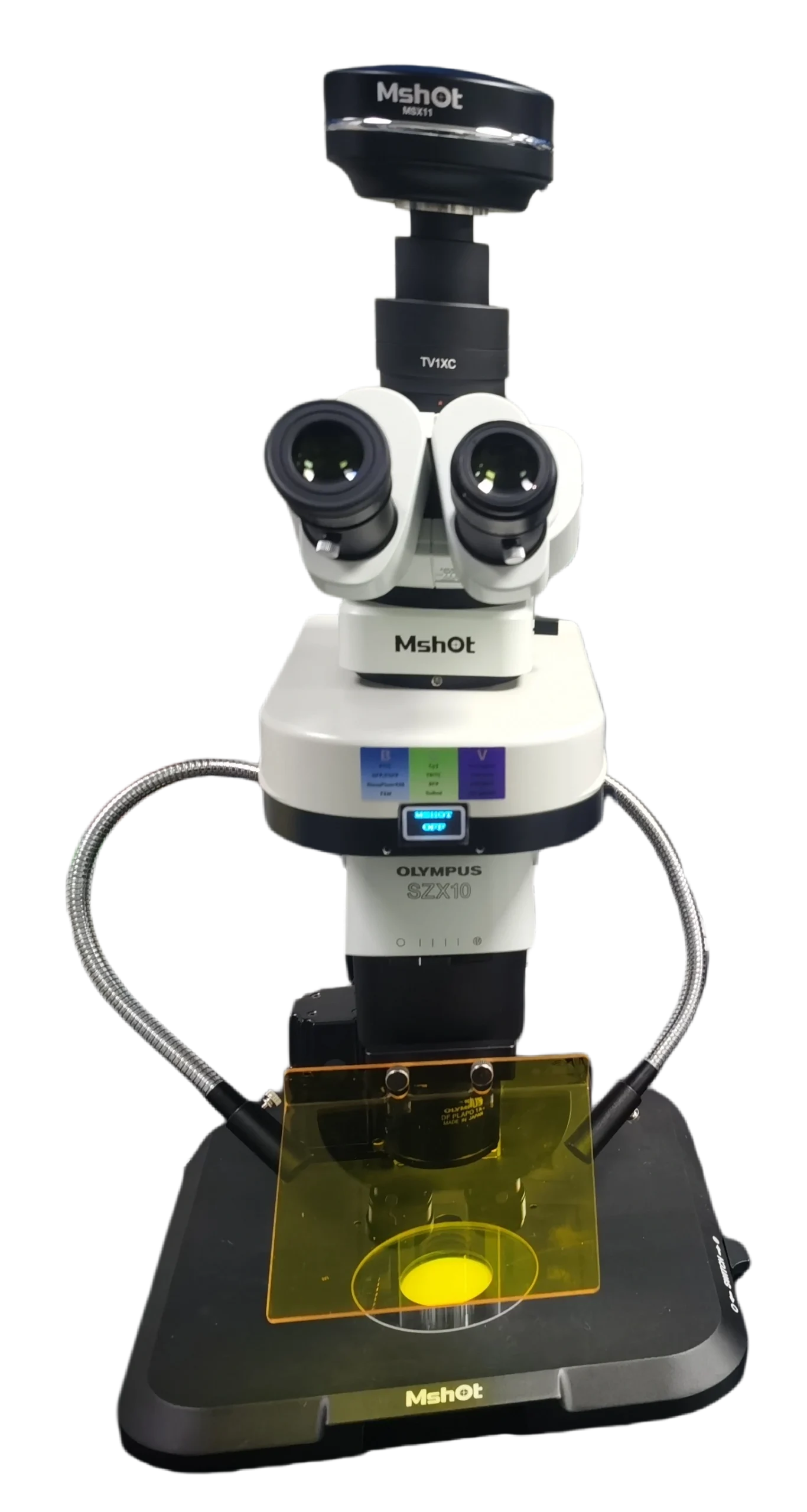

The Olympus SZX10 stereo microscope is commonly used in biological research, developmental studies, and sample analysis requiring high-quality three-dimensional observation.

The MSHOT MZX-LED stereo fluorescence module provides an efficient fluorescence upgrade solution for SZX10 users, allowing researchers to add fluorescence imaging capability without replacing their existing stereo microscope.

MZX-LED combines stable LED excitation with convenient operation, helping laboratories improve sample visualization efficiency.

Share:

Get Exclusive Offers and Updates!

    Description

    ● Designed for Olympus SZX10 Fluorescence Upgrade

    ● Enhance Stereo Microscopy with Fluorescence Imaging

    ● Suitable for Research and Biological Applications

    ● Stable and Uniform Fluorescence Illumination

    ● Easy Integration with Existing Systems

    ● Low Maintenance LED Fluorescence Solution

    Feature

    MZX-LED Fluorescence Module Features

    ■ Compact design contains light source and filters in one unit.
    ■ Instant on-off, no need waiting of pre-heating or cooling.
    ■ Unique dual light path design, higher and more uniform brightness.
    ■ Two-color three-channel structure design, standard configuration of two large-view fluorescence channels and one bright field channel for external bright field lighting to pass.
    ■ Digital screen shows light intensity 0~100% of each channel.
    ■ Memory function of last fluorescence lighting intensity individually.
    ■ No requirement of external or added power supply.
    ■ Linked rotating knob move filter cubes and light source by one step
    ■ CE, FCC, EMC, EU, ISO certified.

    MZX-LED Fluorescence Module classic applications

    Biological live imaging, Nematode, Chick CAM, Drosophila, Zebrafish, Embryo, Forensic investigation.

    Specifications

    Item Specifications
    Filter Cube: B FB-B-M : EX: 470/40nm; DM: 505nm; EM: 530/40nm;
    FL-B-M : EX: 460-490nm; DM: 500nm; EM: 520nm LP;
    Filter Cube: G FB-G-M : EX: 530/40nm; DM: 565nm; EM: 605/55nm;
    FL-G-M : EX: 510-550nm; DM: 570nm; EM: 590nm LP;
    Filter Cube: U FB-U-M : EX: 375/28nm; DM: 415nm; EM: 460/50nm;
    FL-G-M : EX: 330-380nm; DM: 400nm; EM: 420nm LP;
    Filter Cube: Y FL-Y-M : EX: 540-580nm; DM: 600nm; EM: 610 nm LP
    Excitation Light Source 3W LED light source (5W for Y/G), adjustable brightness, visual digital display
    Observation Method Fluorescence / Brightfield switching
    Power Input  DC 12V 2A
