MZX-LED Fluorescence Module for Nikon SMZ1270 Stereo Microscope

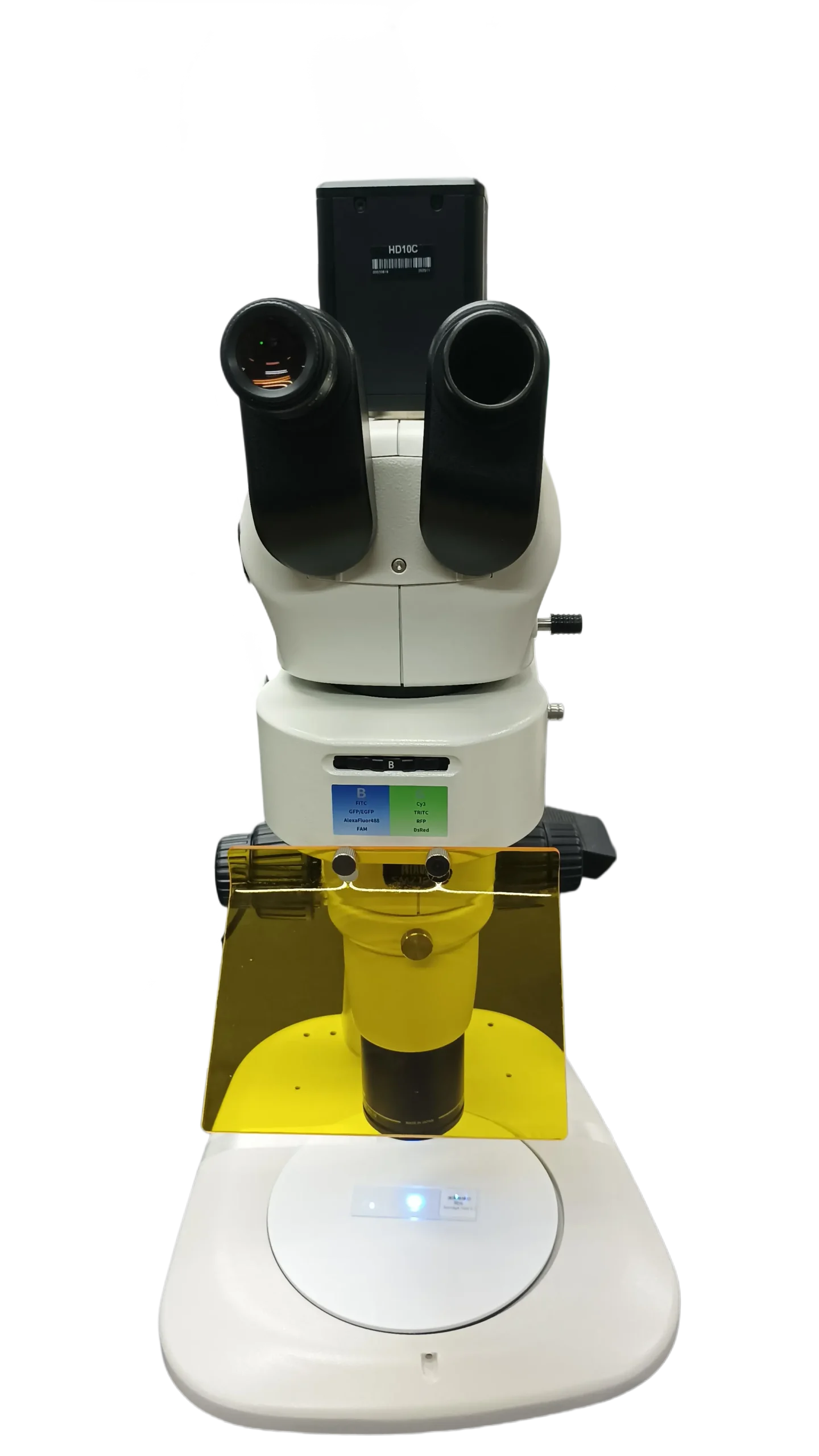

MZX-LED Fluorescence Module is perfectly compatible with the Nikon SMZ1270 Stereo Microscope. Tailored for the microscope’s Galileo parallel optical system, this dedicated upgrade module empowers the standard SMZ1270 with professional fluorescence observation capability without altering the original optical path. It adopts a dual-color three-channel design, supporting up to three types of fluorescence observation and covering multiple common bands including V, B, G, Y and R. Equipped with a digital display screen, it enables precise and controllable brightness adjustment to meet quantitative experiment standards. With an expanded light field of view and highly optimized compatibility with the SMZ1270, the MZX-LED Fluorescence Module comprehensively upgrades the microscope’s performance, extending its basic observation functions to high-precision professional fluorescence detection scenarios.

Categories: Fluorescence modules & LED illuminators, Stereo-fluorescence module MZX-LED

Description

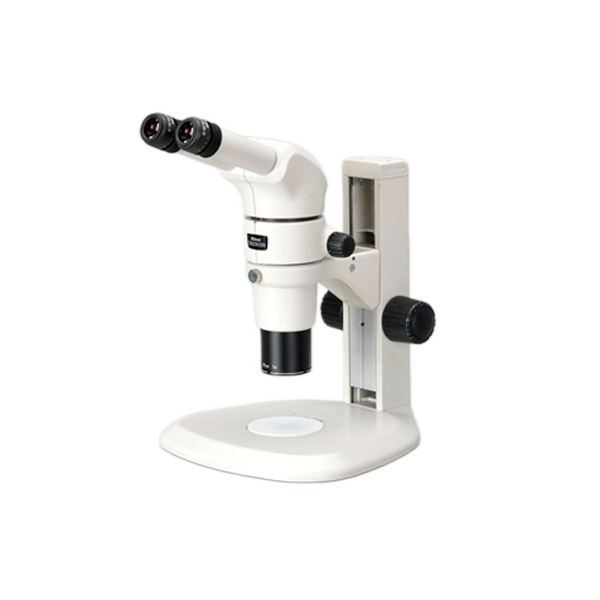

The Nikon SMZ1270 is a high-end Galileo parallel optical stereo microscope with a 12.7:1 ultra-wide zoom ratio. It provides ultra-sharp, true-color full-field observation, boasting a wide field of view and long working distance for industrial precision inspection and biological research, and allows flexible digital imaging expansion.
Our MZX-LED Fluorescence Module is perfectly compatible with the Nikon SMZ1270.

Feature

MZX-LED Fluorescence Module Features

■ Compact design contains light source and filters in one unit.
■ Instant on-off, no need waiting of pre-heating or cooling.
■ Unique dual light path design, higher and more uniform brightness.
■ Two-color three-channel structure design, standard configuration of two large-view fluorescence channels and one bright field channel for external bright field lighting to pass.
■ Digital screen shows light intensity 0~100% of each channel.
■ Memory function of last fluorescence lighting intensity individually.
■ No requirement of external or added power supply.
■ Linked rotating knob move filter cubes and light source by one step
■ CE, FCC, EMC, EU, ISO certified.

MZX-LED Fluorescence Module classic applications

Biological live imaging, Nematode, Chick CAM, Drosophila, Zebrafish, Embryo, Forensic investigation.

Specifications

Types	Item No.			Excitation groups		Filter Groups				Compatible microscopes
2 channels	MZX-BG-LED / MZX-BY-LED			BG/BY		BG/BY				Olympus SZX Nikon SMZ Leica M Zeiss V/Discovery/SV Sunny SZX12 Motic SZM7
3 channels	MZX-BGV-LED /MZX-BYU-LED			BGV/BYV		BGV/BYV
Standard LED lamp and Filters
Model		LED lamp	Filter wavelength						Mainly Applied Fluorochrome
		Color	Excitation filter		Dichroic mirror		Emission filter
B		Blue	475/40nm		505nmLP		525/45nm		GFP/ FITC /EGFP
G		Green	530/40nm		570nmLP		590nmLP		PI / EB / EH /TRITC
Y		Yellow	560/40nm		600nmLP		610nmLP		Mcherry/TexasRed/Alexa Fluor 594
V		Violet	400/40nm		430nmLP		460nmLP		CFP/part of DAPI
Light source		Blue: 6W LED for each filter group, 3W per LED lamp Green: 12W LED for each filter group, 6W per LED lamp Yellow: 10W for each filter group: 5W per LED lamp Violet:6W LED for each filter group, 3W per LED lamp
Observation		Fluorescence Bright field from microscope original light
Screen		Digital screen show light intensity and remember light intensity of each color light source
Operation		Rotating knob one step move different channels LED light source and filter cubes
Power control		Rota-table knob, continuously adjustable brightness
Input power		DC 12V 2A
Shell		High rigid precision-cast aluminium with coating and vents
Baffle		Orange color plastic light baffle
Optional LED lamp and Filters
LED		Filter type		Excitation filter				Dichroic mirror			Emission filter
Blue		Blue Long-pass		460-490nm				>500nm			510nmLP
Green		Green Band-pass		475/40nm				>500nm			535/45nm
Yellow		Yellow Band-pass		560/40nm				>600nm			635/60nm
Violet		Violet Band-pass		395/25nm				>425nm			460/50nmLP
Red		Red Band-pass		620/50nm				>655nm			690/45nm
