Research-Grade Inverted Biological Microscope MIX60

The inverted microscope MIX60 is a research-grade biological microscope with high imaging performance, function similar to Olympus CKX53. Its intelligent use, clear observation details, flat image field without field curvature, ultra-long working distance condenser, supports bright field and phase contrast observation, and can be upgraded to expand fluorescence observation; equipped with OLED digital display screen and voice broadcast function can display light intensity and objective lens magnification in real time.

Description

Multi-Mag Phase Contrast Observation: Crystal clear visualization of transparent samples.
Flexible Adapter for Diverse Containers: Seamlessly meets varied culture requirements.
Intelligent Digital Module: Thoughtfully designed for an enhanced experience.

Feature

Digital intelligent module, more considerate design:

■ECO light-off function when people leave. The new sensor can be set to automatically turn off the light source after no one is using it for a certain period of time, realizing the function of turning off the lights when people leave and turning on the lights when people come, saving power and extending the life of the light source.
■Intuitive LED digital display screen The fuselage is equipped with an OLED screen, which intuitively displays the current objective lens magnification and light intensity index. It can also perform voice broadcast to facilitate the selection of objective lens magnification.

Supports phase contrast observation at multiple magnifications:

The condenser is equipped with a push-pull switching phase contrast insert plate, which can be used with multiple phase contrast objectives to achieve phase contrast observation at different magnifications, clearly showing the morphological details of living cell samples.

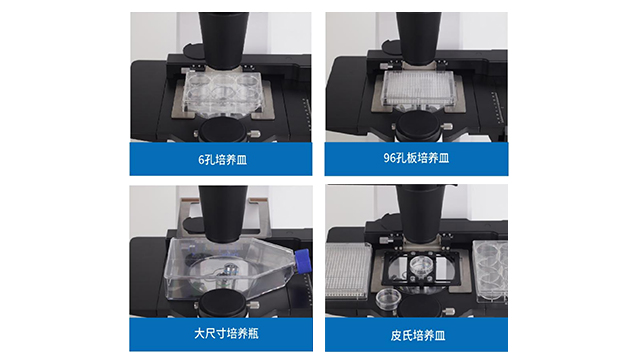

Flexible adaptation to different culture containers to meet diverse needs:

The universal sample holder can be adapted to common culture containers such as multi-well plates and culture bottles. With a reversible design, it can also accommodate extra-large culture bottles and other containers; at the same time, the stage can be expanded to 351mm × 251mm.

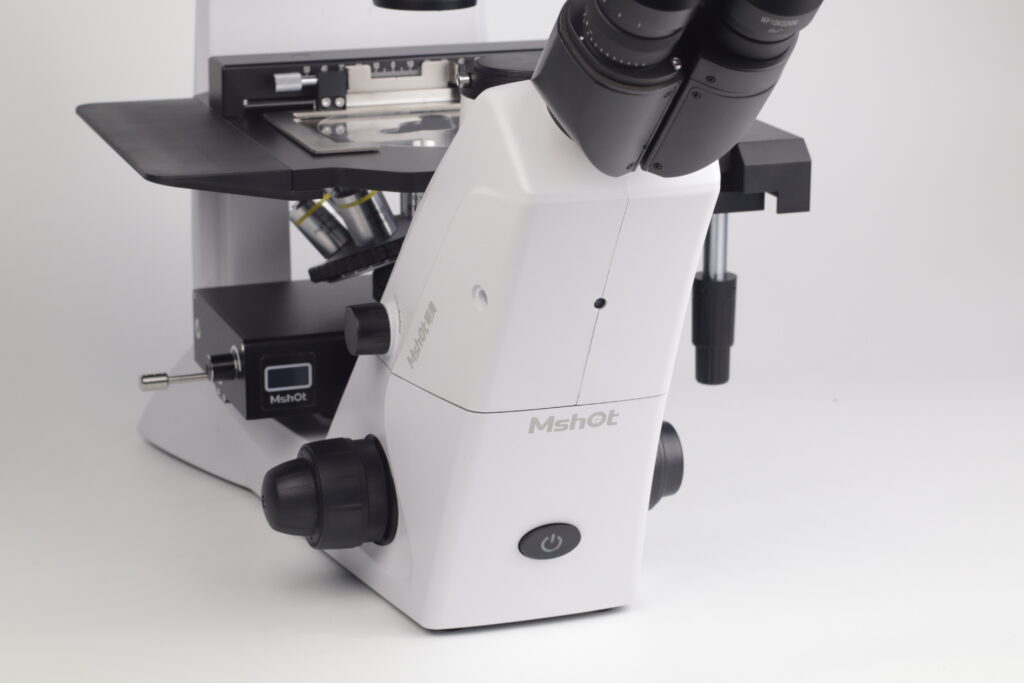

Microscope Detail:

Sample images:

Specifications

Items	Specifications
Microscope Frame	• Infinity color-corrected optical system; frame equipped with ECO auto-off function (motion-sensing power saving); supports on-frame power supply
Eyepiece	• SWF10X/22mm super wide field eyepiece, high eyepoint, single diopter adjustable • SWF10X/23mm super wide field eyepiece, high eyepoint, diopter adjustable (Optional) • Centering telescope
Viewing Head	• 45° inclined, interpupillary distance: 50–75mm, light split ratio = 100:0 or 0:100
Nosepiece	• Quintuple coded revolving nosepiece with internal locating, ball bearing indexing; equipped with anti-mold device and brightness memory function
Stage	• Fixed stage size: 267.4mm × 271.4mm • XY mechanical stage attached with moving ruler, movement range: 110mm × 75mm • Equipped with stage extension plates
Universal Holder	• Compatible with glass slides and various Petri dish sizes
Stage Insert / Drip Plate	• Round transparent stage insert: Φ118mm
Condenser	• Numerical Aperture (N.A.): 0.3, Working Distance (W.D.): 72mm • Detachable condenser; accommodates containers height $ge$ 19cm on the stage when removed
Phase Contrast Slider	• Includes 1 × 10X phase ring, and 1 × shared 20X/40X phase ring
Focusing System	• Coaxial coarse and fine focusing system, equipped with limit stopper and tension adjustment device, low-position coaxial focusing knobs, fine focusing graduation: 2µm
Illumination	• 3W full-spectrum white LED, continuously adjustable brightness • Detachable filter holder can accommodate Φ34mm filters (Blue, Green, Yellow, etc.) • Equipped with aperture diaphragm, iris leaves, manual control switch
Digital Display Screen	• Displays current working status, including ECO, voice functions, objective magnification, and brightness level, etc.; supports voice broadcast of the current objective magnification
Objective (Configurable)	• (Optional) Long working distance plan achromatic objectives: 4X / 10X / 20X / 40X • (Optional) Long working distance plan phase contrast objectives: 4X / 10X / 20X / 40X

Resources

Inverted biological microscope MIX60 brochure

1 file(s) 3.61 MB

Download

Inverted biological microscope MIX60/MIX60-FL user manual

1 file(s) 1.17 MB

Download
