Upgrade Olympus SZX12 Stereo Microscope to LED Fluorescence

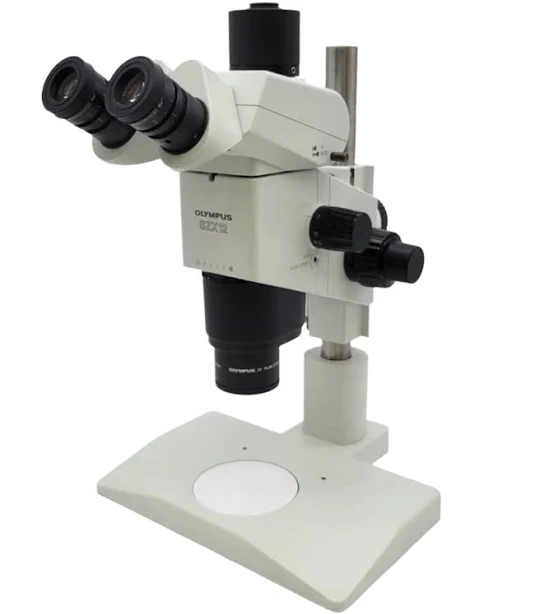

The Olympus SZX12 stereo microscope is widely used for detailed specimen observation in biology, research, and industrial applications. Adding fluorescence capability allows users to visualize specific structures and fluorescent markers while maintaining the advantages of stereo microscopy.

The MSHOT MZX-LED stereo fluorescence module provides a practical upgrade solution for Olympus SZX12 microscopes, expanding their imaging capability with reliable LED fluorescence illumination.

Share:

Get Exclusive Offers and Updates!

    Description

    ● Designed for Olympus SZX12 Fluorescence Upgrade

    ● Expand Stereo Observation with Fluorescence Capability

    ● Suitable for Biological and Research Samples

    ● Stable LED Excitation Performance

    ● Flexible Fluorescence Configuration Options

    ● Mercury-Free Long-Life Illumination

    Feature

    MZX-LED Fluorescence Module Features

    ■ Compact design contains light source and filters in one unit.
    ■ Instant on-off, no need waiting of pre-heating or cooling.
    ■ Unique dual light path design, higher and more uniform brightness.
    ■ Two-color three-channel structure design, standard configuration of two large-view fluorescence channels and one bright field channel for external bright field lighting to pass.
    ■ Digital screen shows light intensity 0~100% of each channel.
    ■ Memory function of last fluorescence lighting intensity individually.
    ■ No requirement of external or added power supply.
    ■ Linked rotating knob move filter cubes and light source by one step
    ■ CE, FCC, EMC, EU, ISO certified.

    MZX-LED Fluorescence Module classic applications

    Biological live imaging, Nematode, Chick CAM, Drosophila, Zebrafish, Embryo, Forensic investigation.

    Specifications

    Item Specifications
    Filter Cube: B FB-B-M : EX: 470/40nm; DM: 505nm; EM: 530/40nm;
    FL-B-M : EX: 460-490nm; DM: 500nm; EM: 520nm LP;
    Filter Cube: G FB-G-M : EX: 530/40nm; DM: 565nm; EM: 605/55nm;
    FL-G-M : EX: 510-550nm; DM: 570nm; EM: 590nm LP;
    Filter Cube: U FB-U-M : EX: 375/28nm; DM: 415nm; EM: 460/50nm;
    FL-G-M : EX: 330-380nm; DM: 400nm; EM: 420nm LP;
    Filter Cube: Y FL-Y-M : EX: 540-580nm; DM: 600nm; EM: 610 nm LP
    Excitation Light Source 3W LED light source (5W for Y/G), adjustable brightness, visual digital display
    Observation Method Fluorescence / Brightfield switching
    Power Input  DC 12V 2A
