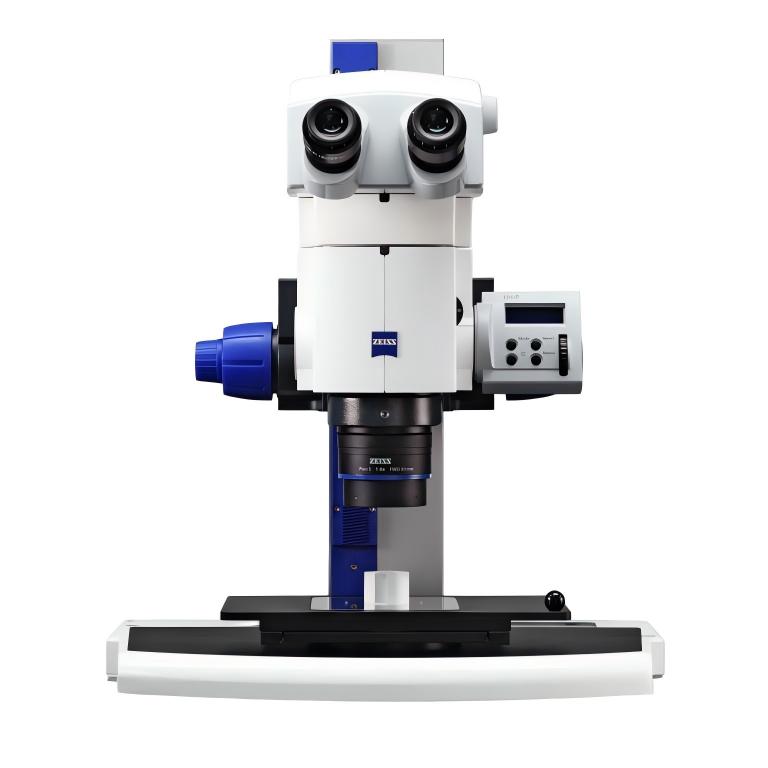

MZX-LED Fluorescence Module for Zeiss SteREO Discovery.V12 Stereo Microscope

MZX-LED Fluorescence Module for Zeiss SteREO Discovery.V12 Stereo Microscope

The Mshot stereo fluorescence module perfectly upgrades the ZEISS SteREO Discovery.V12, delivering superior stereo fluorescence imaging for developmental biology, embryo observation and specimen micro-dissection.Fully compatible with the ZEISS SteREO Discovery.V12, this plug-and-play Mshot module enhances fluorescence imaging performance for industrial micro-component inspection and biomedical research applications.

Categories: ,
Share:

Get Exclusive Offers and Updates!

    Description

    MSHOT Fluorescence Module for SteREO Discovery.V12 Stereo Microscope  | Upgrade Kit

    The Mshot stereo fluorescence module supports conventional U, B, G and Y fluorescence bands.It adopts a large-field high-uniformity excitation design and is equipped with stepless digital dimming for precise brightness adjustment.Plug-and-play and instant start without warm-up, it perfectly upgrades the microscope, ideal for developmental biology research, specimen micro-dissection, pathological analysis, biomedical research and industrial micro-component inspection.

    Feature

    MZX-LED Fluorescence Module Features

    ■ Compact design contains light source and filters in one unit.
    ■ Instant on-off, no need waiting of pre-heating or cooling.
    ■ Unique dual light path design, higher and more uniform brightness.
    ■ Two-color three-channel structure design, standard configuration of two large-view fluorescence channels and one bright field channel for external bright field lighting to pass.
    ■ Digital screen shows light intensity 0~100% of each channel.
    ■ Memory function of last fluorescence lighting intensity individually.
    ■ No requirement of external or added power supply.
    ■ Linked rotating knob move filter cubes and light source by one step
    ■ CE, FCC, EMC, EU, ISO certified.

    MZX-LED Fluorescence Module classic applications

    Biological live imaging, Nematode, Chick CAM, Drosophila, Zebrafish, Embryo, Forensic investigation.

    Specifications

    Types Item No. Excitation groups Filter Groups Compatible microscopes
    2 channels MZX-BG-LED /

    MZX-BY-LED

    		 BG/BY BG/BY Olympus SZX

    Nikon SMZ

    Leica M

    Zeiss V/Discovery/SV

    Sunny SZX12

    Motic SZM7


    3 channels

    		 MZX-BGV-LED /MZX-BYU-LED

    BGV/BYV



    BGV/BYV
    Standard LED lamp and Filters


    Model

    		 LED lamp Filter wavelength Mainly Applied Fluorochrome
    Color Excitation filter Dichroic mirror Emission filter
    B Blue 475/40nm 505nmLP 525/45nm GFP/ FITC /EGFP
    G Green 530/40nm 570nmLP 590nmLP PI / EB / EH /TRITC
    Y Yellow 560/40nm 600nmLP 610nmLP Mcherry/TexasRed/Alexa Fluor

    594
    V Violet 400/40nm 430nmLP 460nmLP CFP/part of DAPI


    Light source

    		 Blue: 6W LED for each filter group, 3W per LED lamp

    Green: 12W LED for each filter group, 6W per LED lamp

    Yellow: 10W for each filter group: 5W per LED lamp

    Violet:6W LED for each filter group, 3W per LED lamp
    Observation Fluorescence

    Bright field from microscope original light
    Screen Digital screen show light intensity and remember light intensity of each color light source
    Operation Rotating knob one step move different channels LED light source and filter cubes
    Power control Rota-table knob, continuously adjustable brightness
    Input power DC 12V 2A
    Shell High rigid precision-cast aluminium with coating and vents
    Baffle Orange color plastic light baffle
    Optional LED lamp and Filters
    LED Filter type Excitation filter Dichroic mirror Emission filter
    Blue Blue Long-pass 460-490nm >500nm 510nmLP
    Green Green Band-pass 475/40nm >500nm 535/45nm
    Yellow Yellow Band-pass 560/40nm >600nm 635/60nm
    Violet Violet Band-pass 395/25nm >425nm 460/50nmLP
    Red Red Band-pass 620/50nm >655nm 690/45nm
